Crude peptide dissolution negative pressure isolator-High activity protective isolation system-SRI (Jiangsu) Biological Equipment Co., Ltd.

Language

Product features

The isolator features overall explosion-proof design with Exd II BT4 rating
It delivers excellent tightness with hourly leakage rate below 0.25%vol/hr
It meets OEB5 protection level (OEL<1μg/m3) and is certified by authoritative third-party institutions
Customized design is available to make rational use of space according to on-site layout
Adopting negative pressure design, it can adjust pressure automatically as preset
Equipped with water-air spray guns or spray balls to satisfy CIP and WIP requirements
Siemens control system is in compliance with FDA 21CFR PART 11

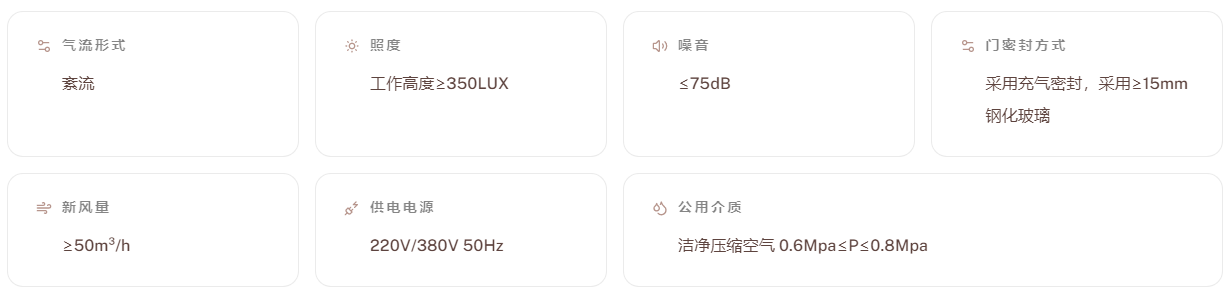

Technical parameters

Airflow form

Turbulence

Illuminance

Working height ≥ 350LUX

Noise

≤75dB

Door sealing method

Adopting inflatable sealing and tempered glass with a thickness of ≥ 15mm

Fresh air volume

≥50m³/h

Power supply

220V/380V 50Hz

Common Medium

Clean compressed air 0.6Mpa ≤ P ≤ 0.8Mpa
