Product features

The whole isolator is designed with explosion-proof performance up to Exd II BT4 grade
Ensures superior tightness with hourly leakage rate below 0.25%vol/hr
Conforms to OEB5 protection standard (OEL<1μg/m3) and passes certification issued by authoritative third-party institutions
Adopts safely replaceable dual-stage PUSH PUSH H14 HEPA filters or BIBO bag-in bag-out H14 high efficiency filters
Equipped with OEB5-standard bag piping system including PE bags, sealing clamps, sealing tools and RTP rapid transfer system
Fitted with high-precision active anti-vibration platform, achieving 0.001% weighing accuracy and supporting low wind speed weighing mode
Negative pressure structure enables automatic pressure adjustment, together with emergency mode and emergency response function
Built-in water-air spray guns and spray balls, fully meeting CIP and WIP cleaning demands
Matched with waste liquid collecting tank for sealed delivery and inactivation disposal
Siemens control system complies with FDA 21CFR PART 11 specifications for electronic signatures, electronic records, audit trails, batch records and relevant reports
The isolator is applicable to centrifugation, filtration, drying, mixing, crushing, weighing, dispensing and other production processes

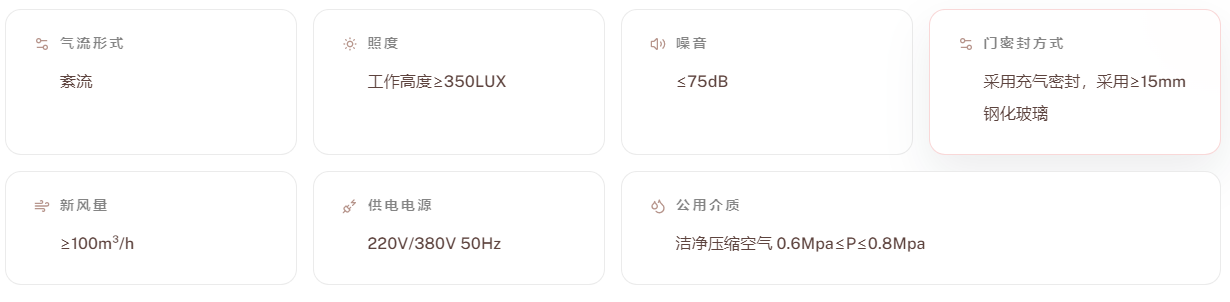

Technical parameters

Airflow form

Turbulence

Illuminance

Working height ≥ 350LUX

Noise

≤75dB

Door sealing method

Adopting inflatable sealing and tempered glass with a thickness of ≥ 15mm

Fresh air volume

≥100m³/h

Power supply

220V/380V 50Hz

Common Medium

Clean compressed air 0.6Mpa ≤ P ≤ 0.8Mpa
