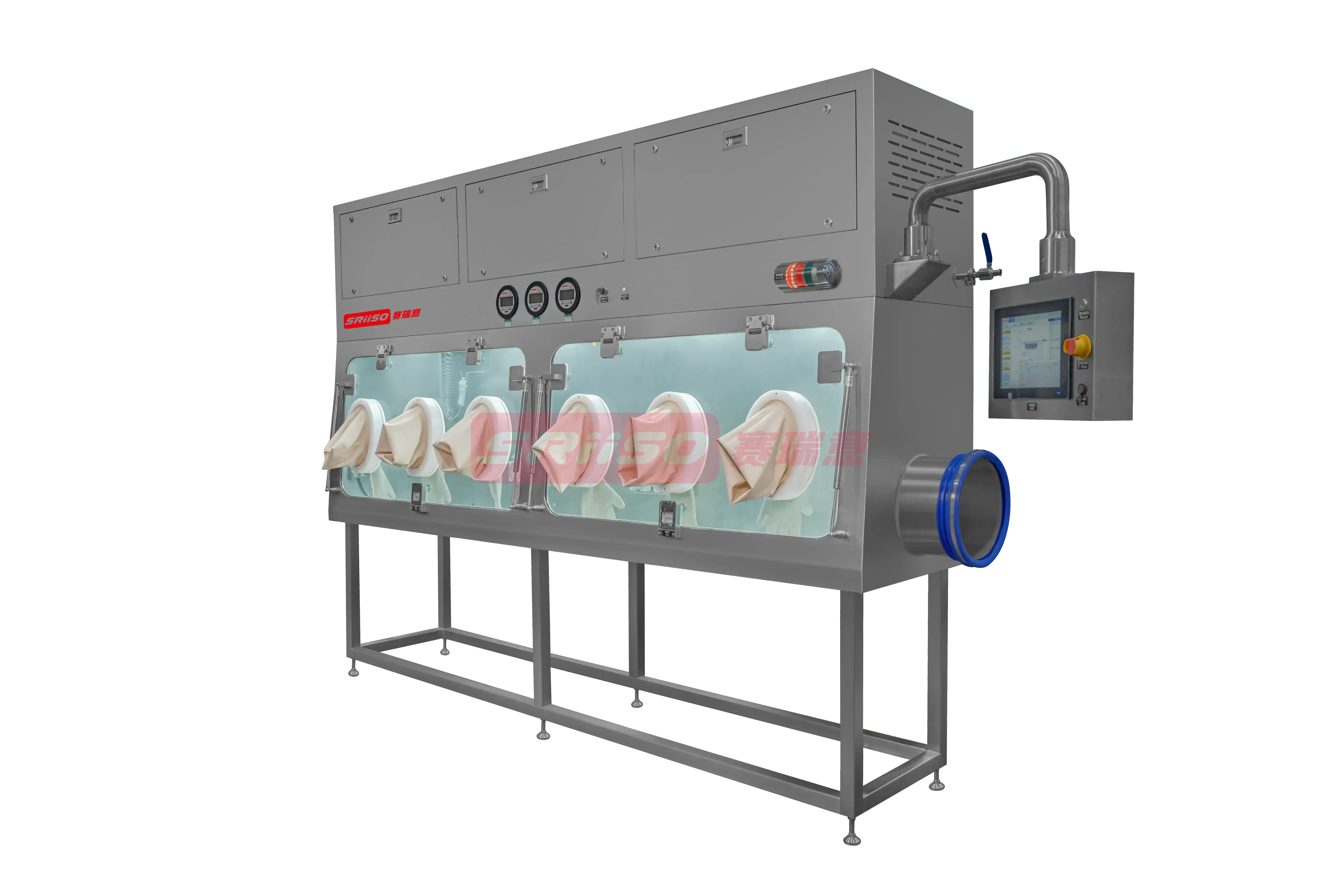

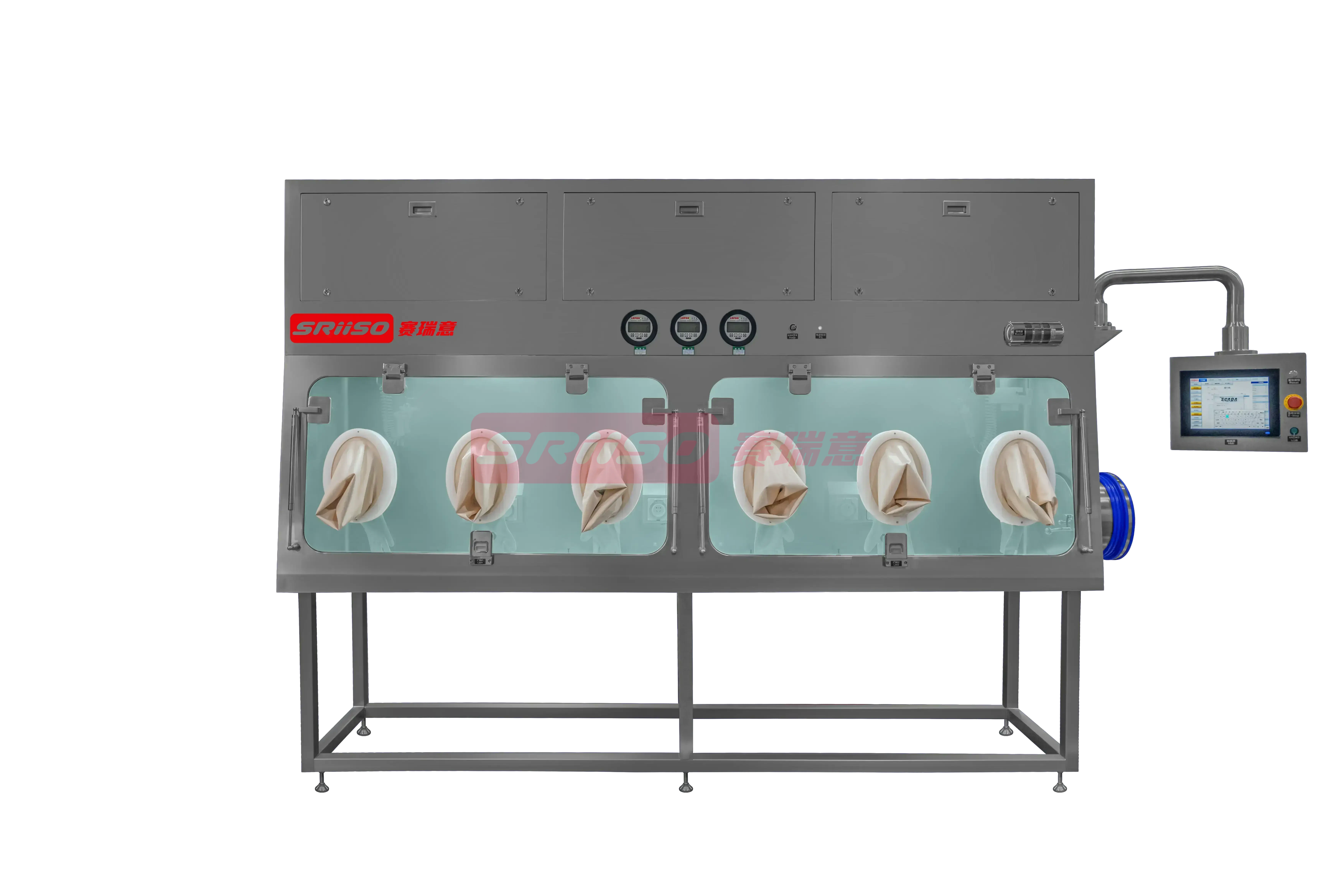

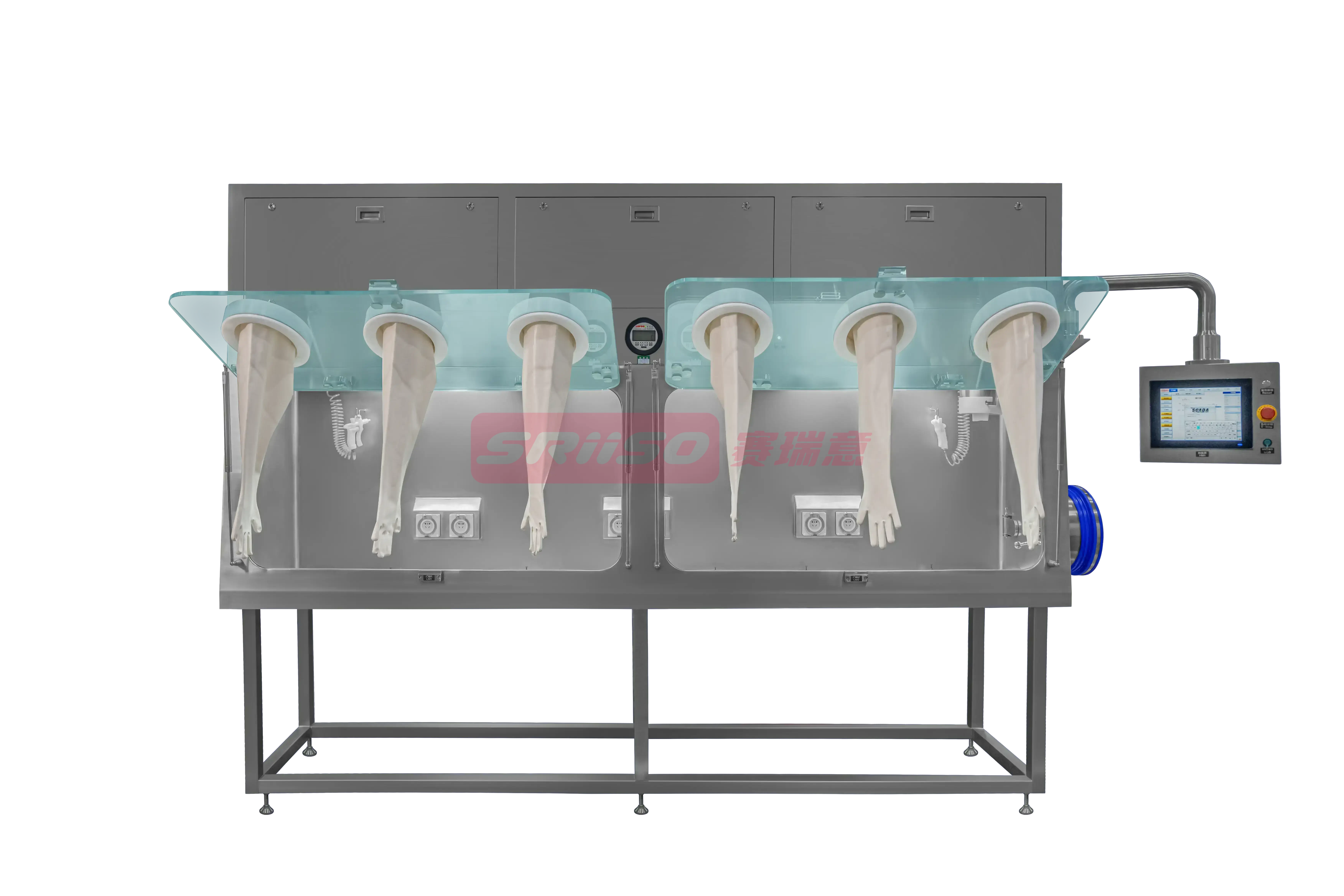

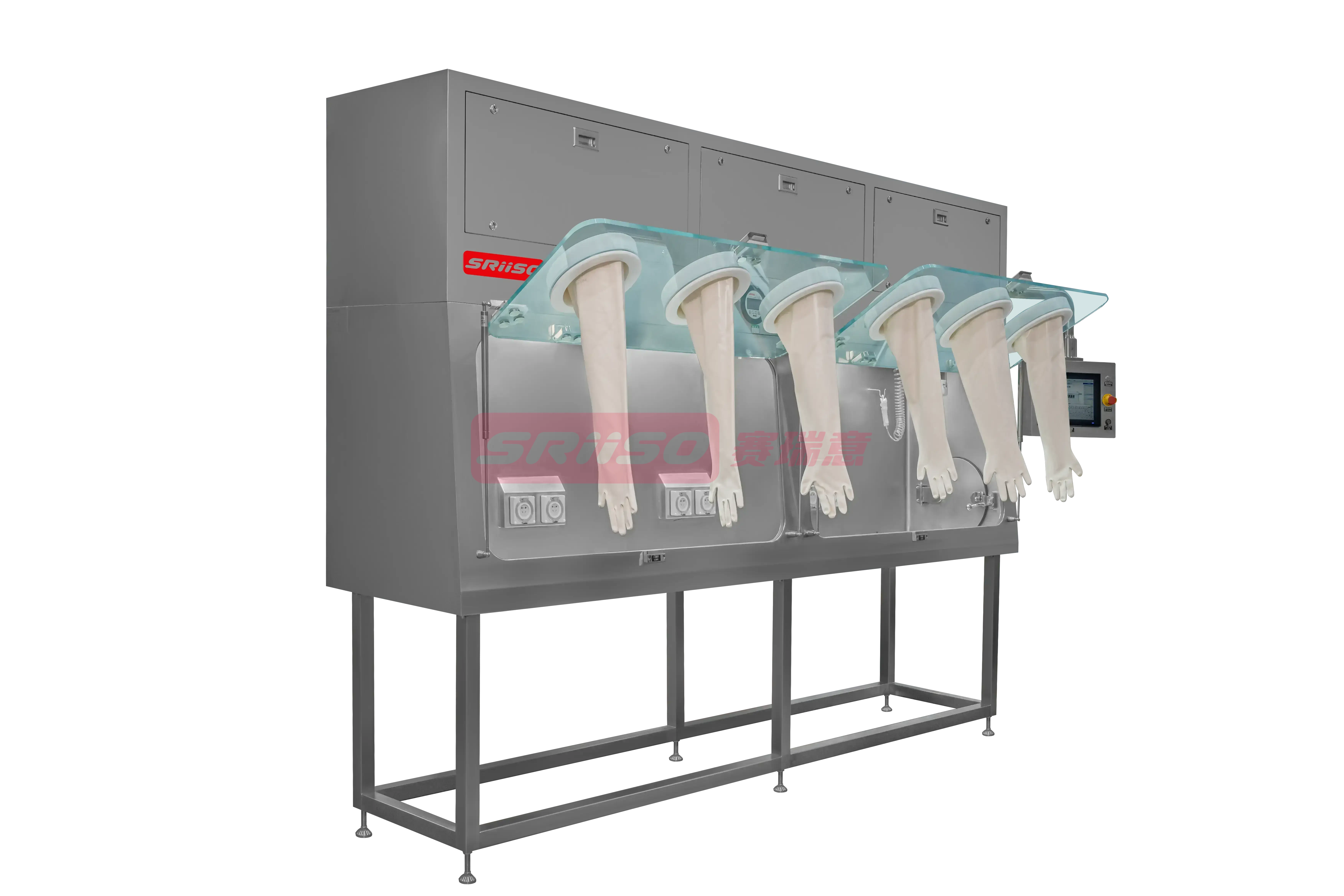

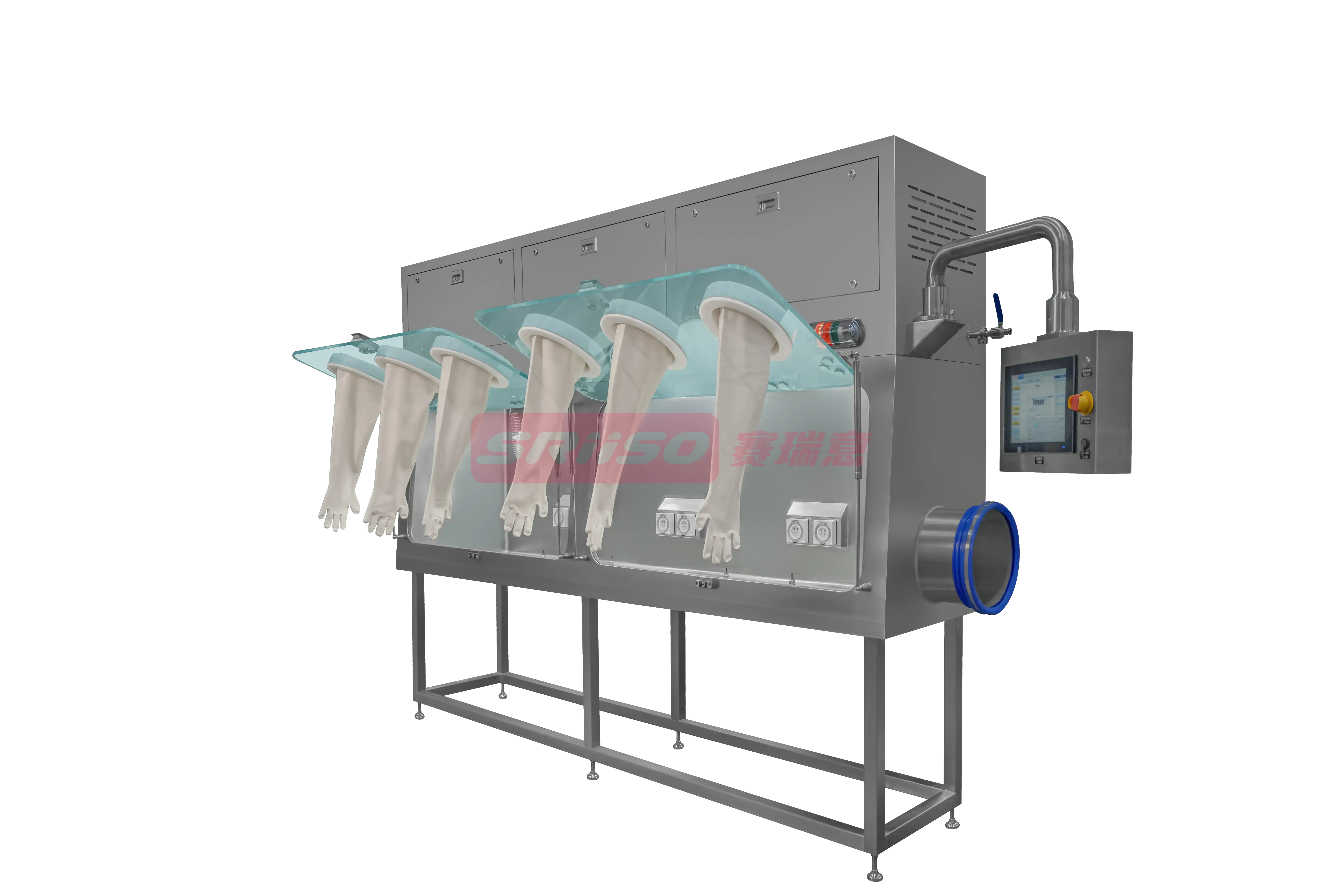

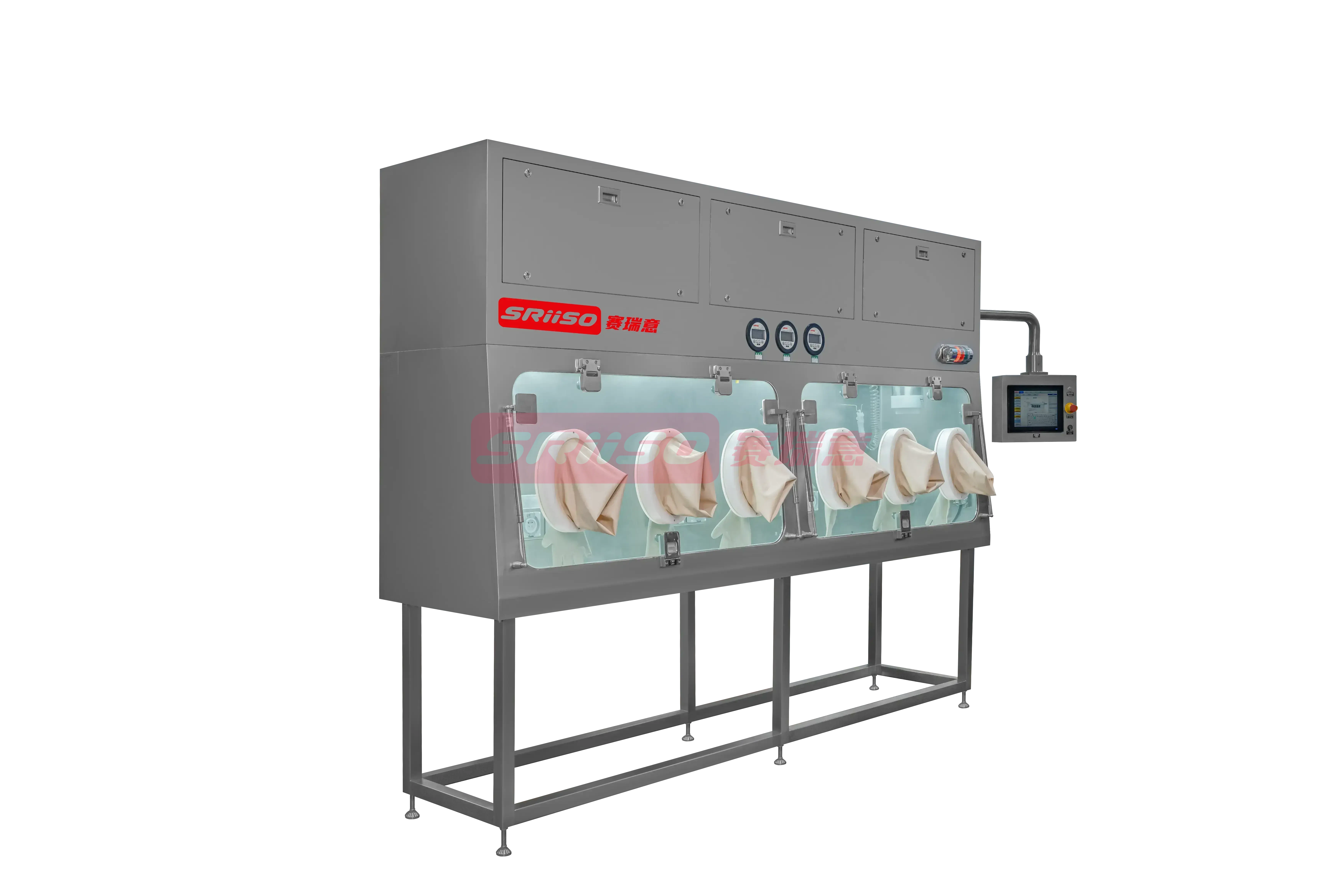

IPQC Negative Pressure Protection Isolator

The IPQC negative pressure protection isolator is suitable for process scenarios related to high activity protection isolation systems, and can be project integrated around equipment interfaces, operation methods, and verification requirements.

The system supports customization based on on-site space and upstream and downstream processes, taking into account operational safety, convenient maintenance, and stable operation.

Product features

Provides good airtightness with hourly leakage rate less than 0.25%vol/hr
Complies with OEB5 protection level (OEL<0.05μg/m3) and certified by authoritative third-party testing organizations
Equipped with safely replaceable dual-stage PUSH PUSH H14 HEPA filters or BIBO bag-in bag-out H14 HEPA filters
Fitted with OEB5-compliant bag and pipe system including PE bags, sealing clamps, sealing tools and RTP rapid transfer system
Comes with high-precision active anti-vibration platform to reach 0.001% weighing accuracy and support low wind speed weighing mode
The isolator adopts negative pressure design for automatic pressure adjustment, equipped with emergency mode and emergency response function
Installed with water-air spray guns or spray balls, satisfying CIP and WIP cleaning requirements
Equipped with waste liquid collection tank for sealed transfer and inactivation treatment
Siemens control system meets FDA 21CFR PART 11 requirements on electronic signature, electronic record, audit trail, batch record and report

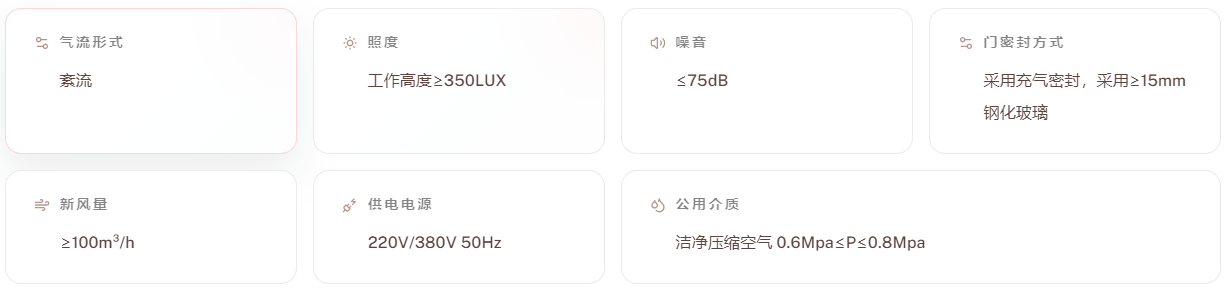

Technical parameters

Airflow form

Turbulence

Illuminance

Working height ≥ 350LUX

Noise

≤75dB

Door sealing method

Adopting inflatable sealing and tempered glass with a thickness of ≥ 15mm

Fresh air volume

≥100m³/h

Power supply

220V/380V 50Hz

Common Medium

Clean compressed air 0.6Mpa ≤ P ≤ 0.8Mpa
