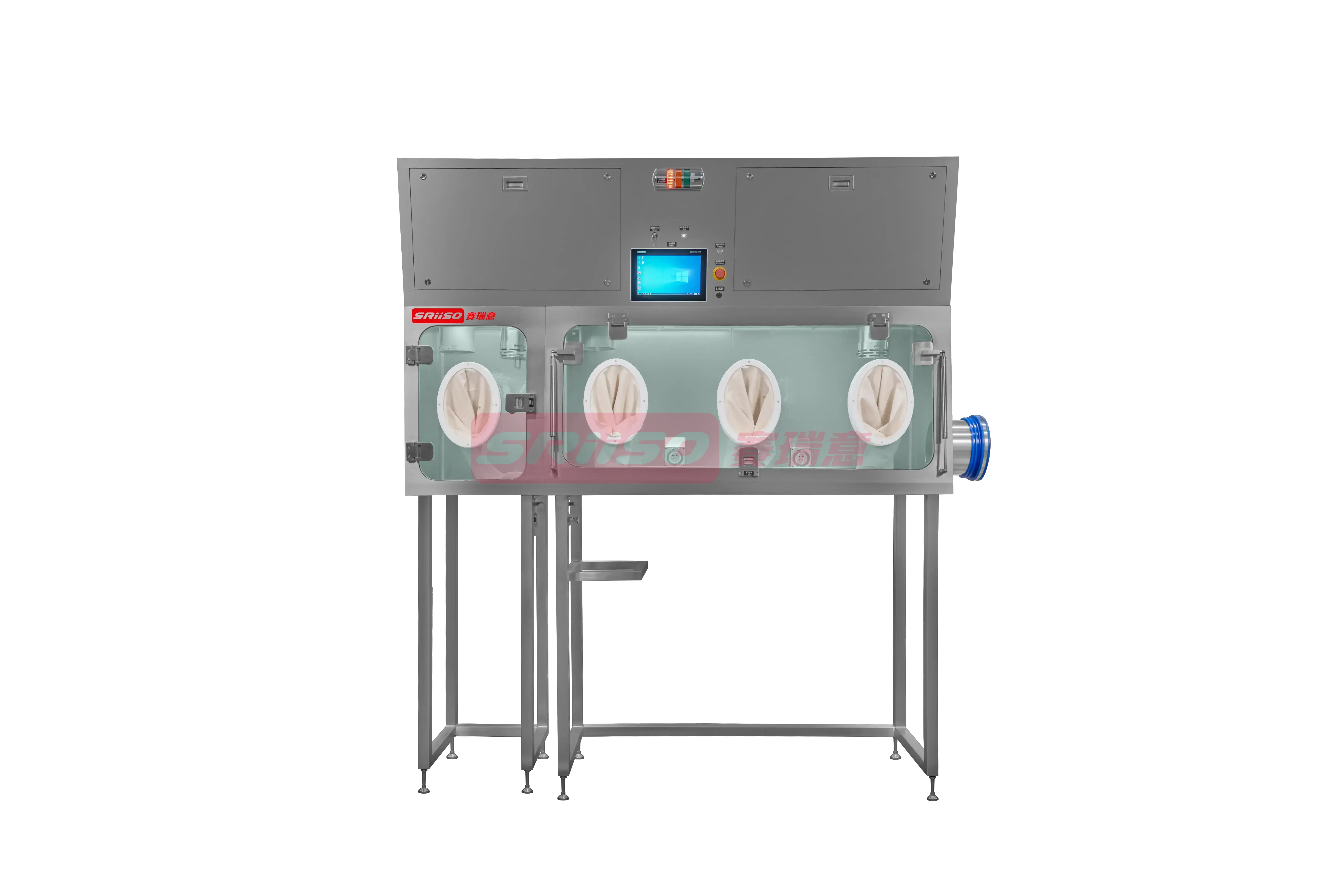

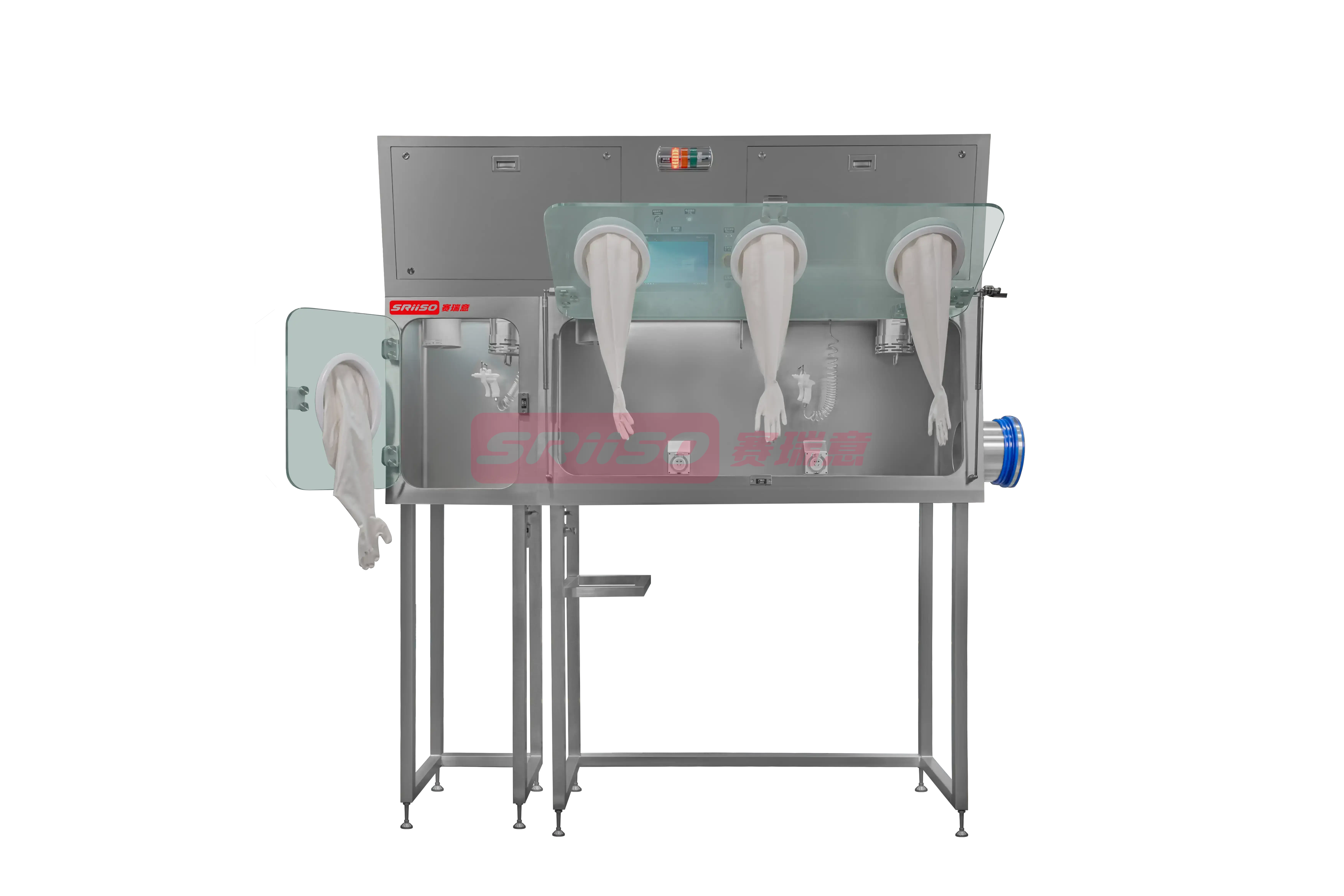

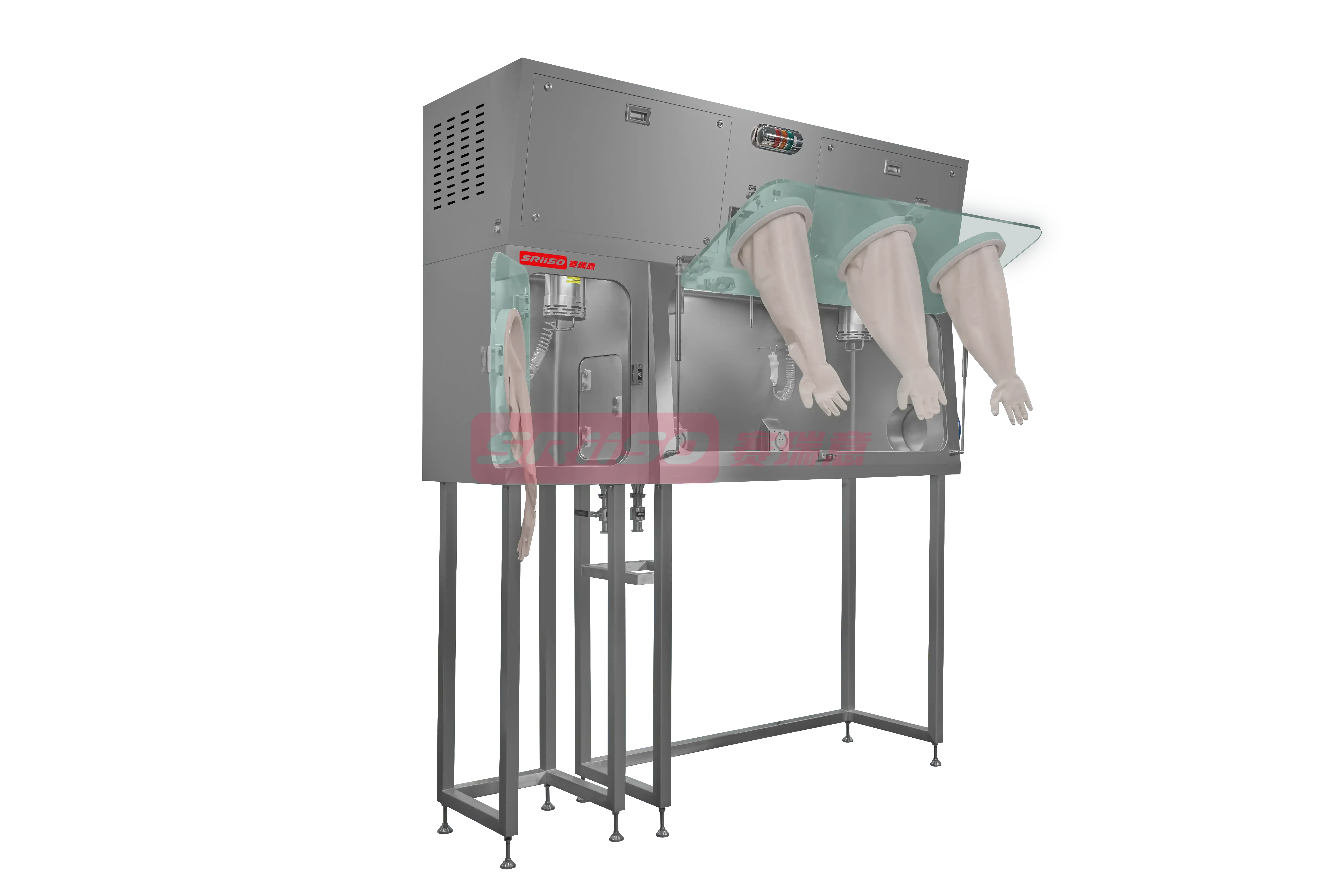

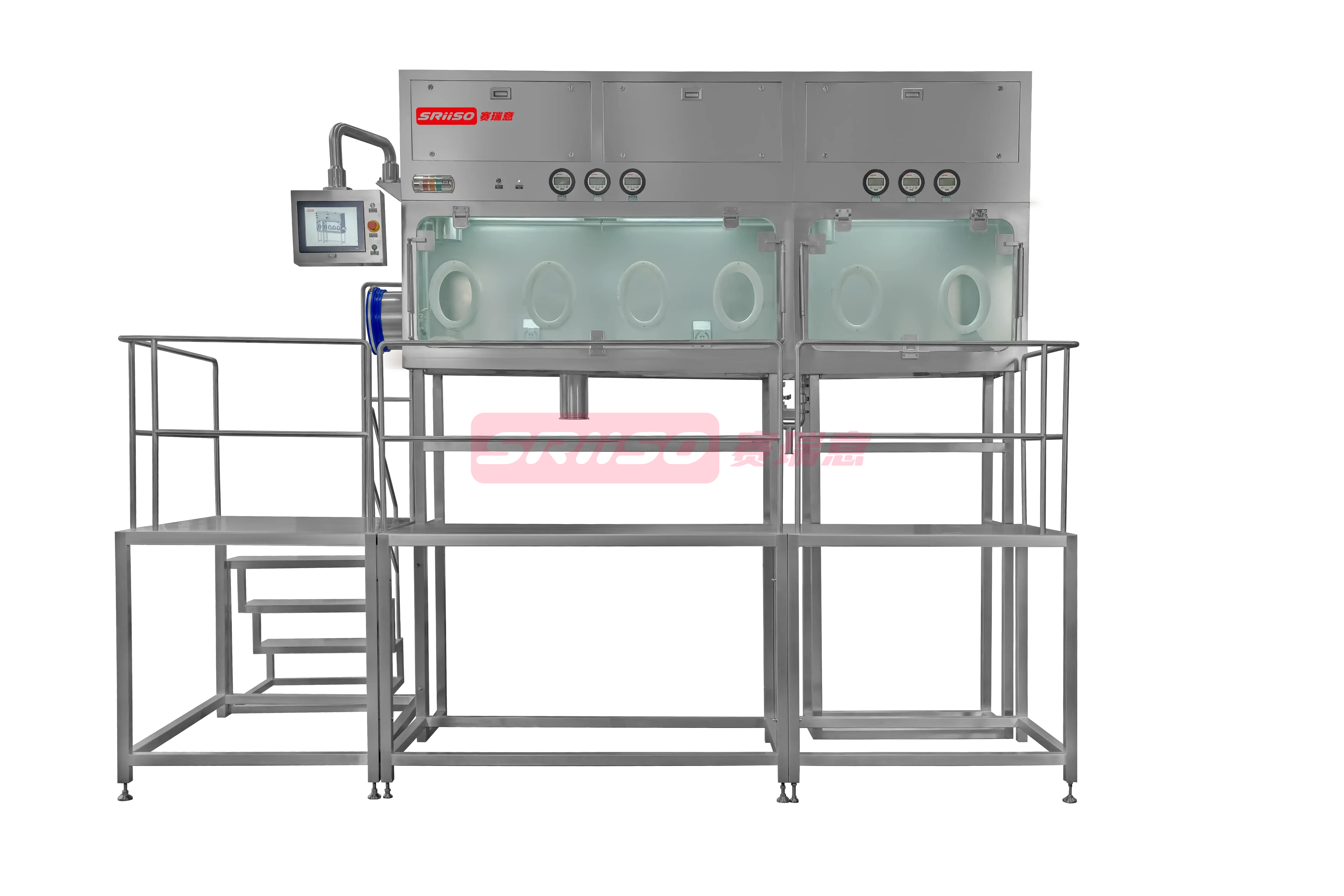

Negative pressure mixing/feeding isolator-High activity protective isolation system-SRI (Jiangsu) Biological Equipment Co., Ltd.

Language

Product features

Provides excellent airtightness with an hourly leakage rate ＜0.25% vol/hr
Fully customized design, suitable for different sizes, heights, and mobile/fixed tanks and liquid preparation systems
Meets OEB5 protection level (OEL < 0.05μg/m3) and certified by authoritative third-party testing institutions
Adopts safely replaceable two-stage PUSH PUSH H14 HEPA filters or BIBO H14 HEPA filters
Equipped with OEB5-compliant bag-in tube system (PE bags, sealing clamps and sealing tools) and RTP rapid transfer system
Configured with high-precision active anti-vibration platform, meeting 1/100,000 weighing accuracy and supporting low-air-speed weighing mode
The isolator adopts negative pressure design, which can be automatically adjusted according to the set value, with emergency mode and emergency response functions
Equipped with water-gas spray guns or spray balls, cleaning design meets CIP (Clean-in-Place) and WIP (Wash-in-Place) requirements
Drainage is equipped with waste liquid collection tank for closed transfer and inactivation treatment
Siemens control system complies with FDA 21CFR PART 11 requirements for electronic signatures, electronic records, audit trails, batch records and reports

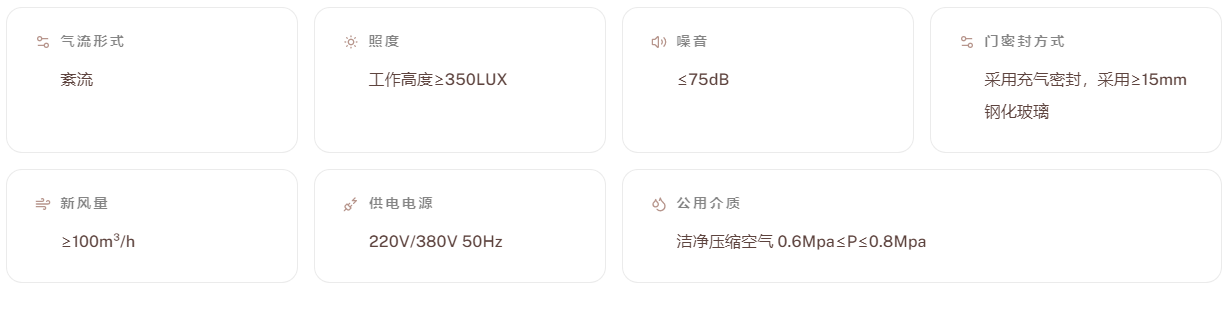

Technical parameters

Airflow form

Turbulence

Illuminance

Working height ≥ 350LUX

Noise

≤75dB

Door sealing method

Adopting inflatable sealing and tempered glass with a thickness of ≥ 15mm

Fresh air volume

≥100m³/h

Power supply

220V/380V 50Hz

Common Medium

Clean compressed air 0.6Mpa ≤ P ≤ 0.8Mpa
