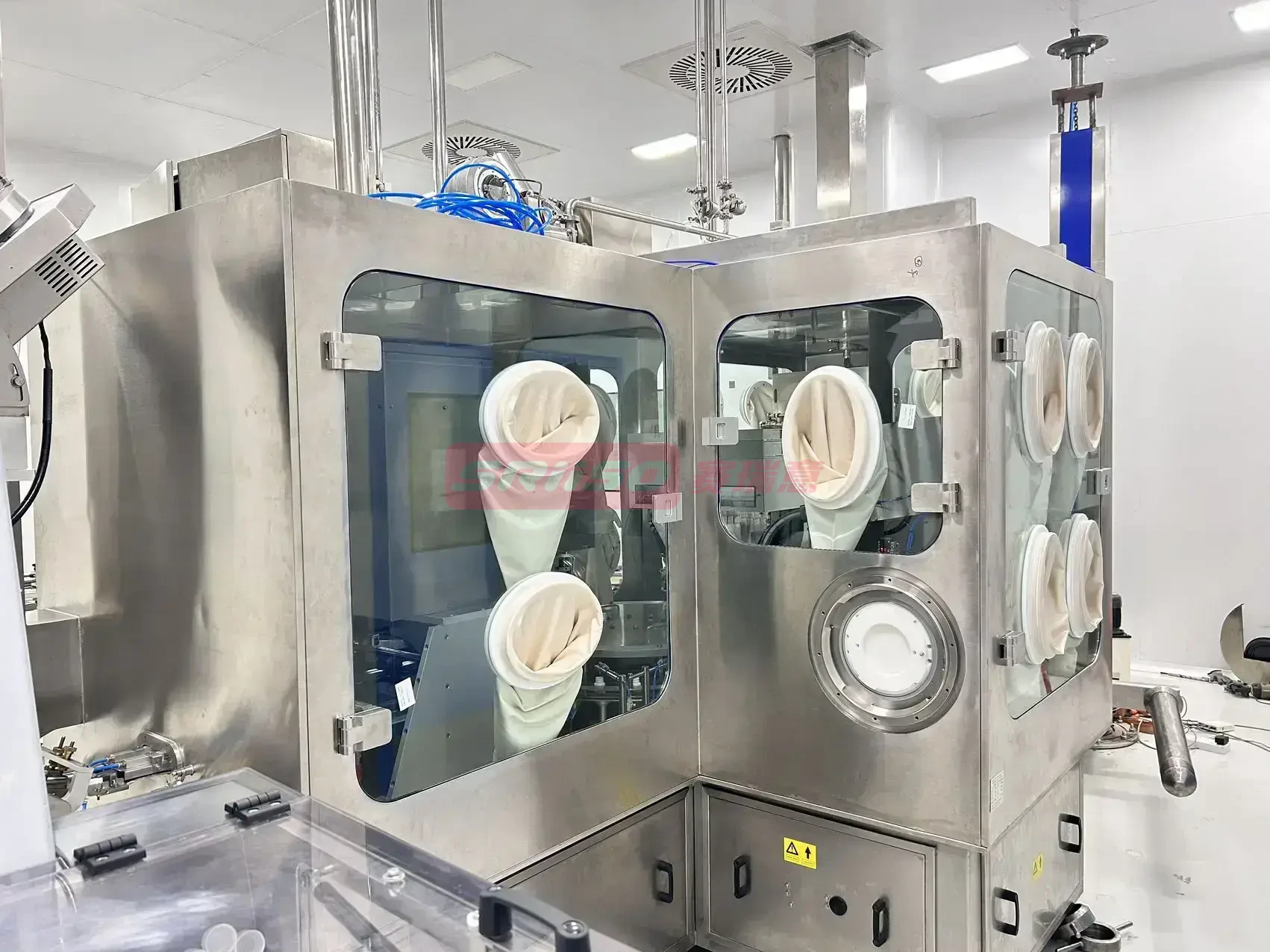

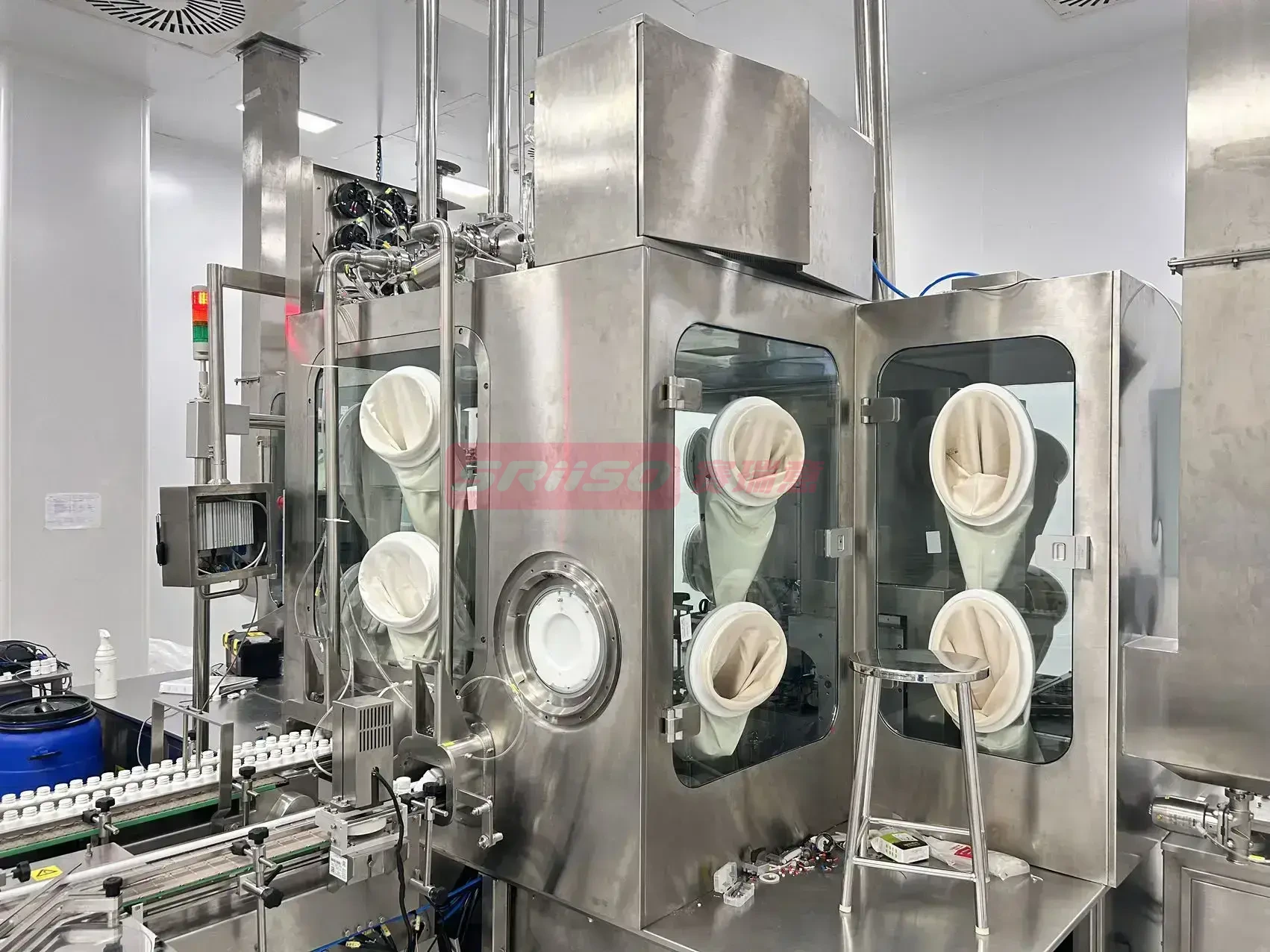

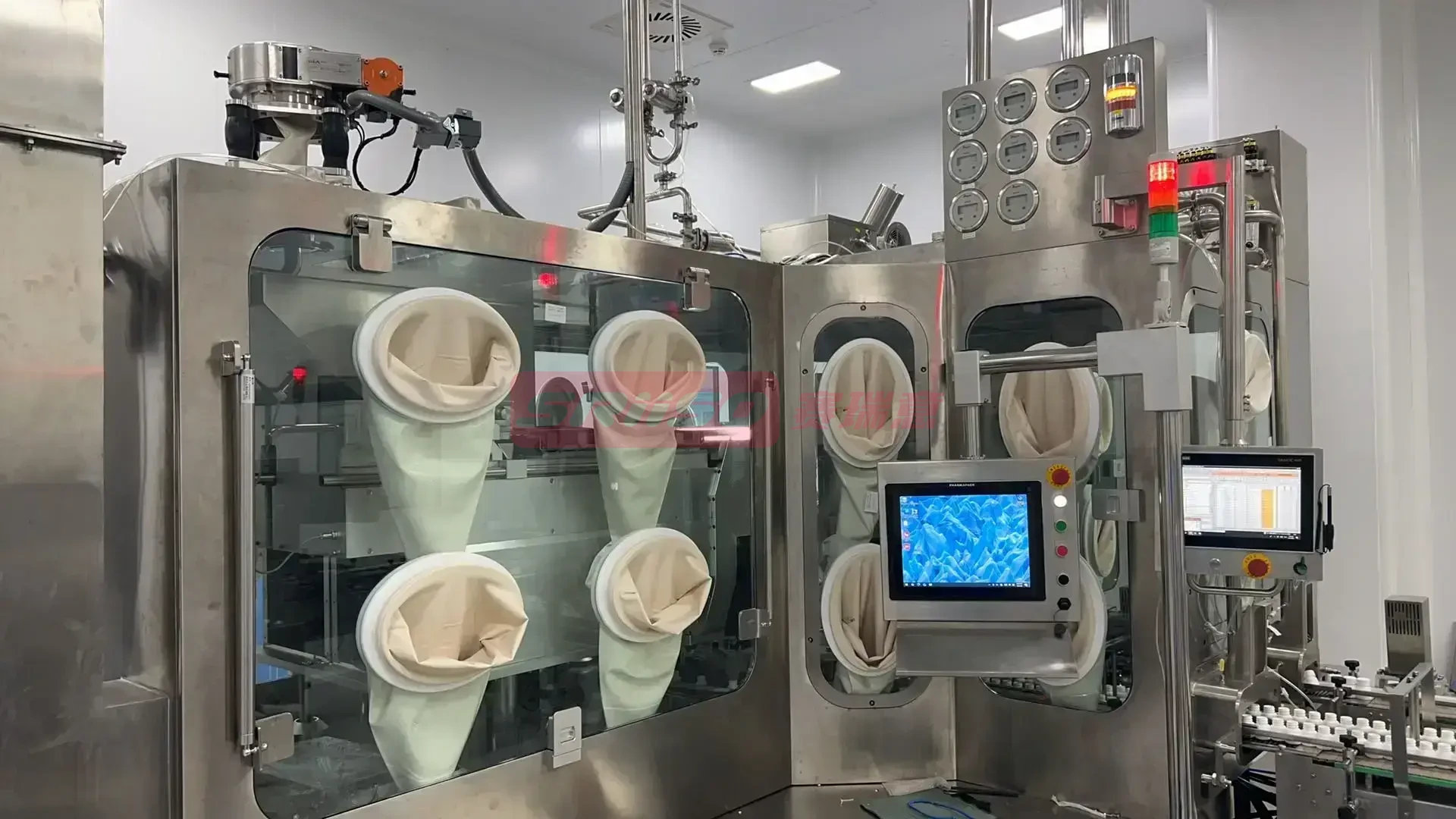

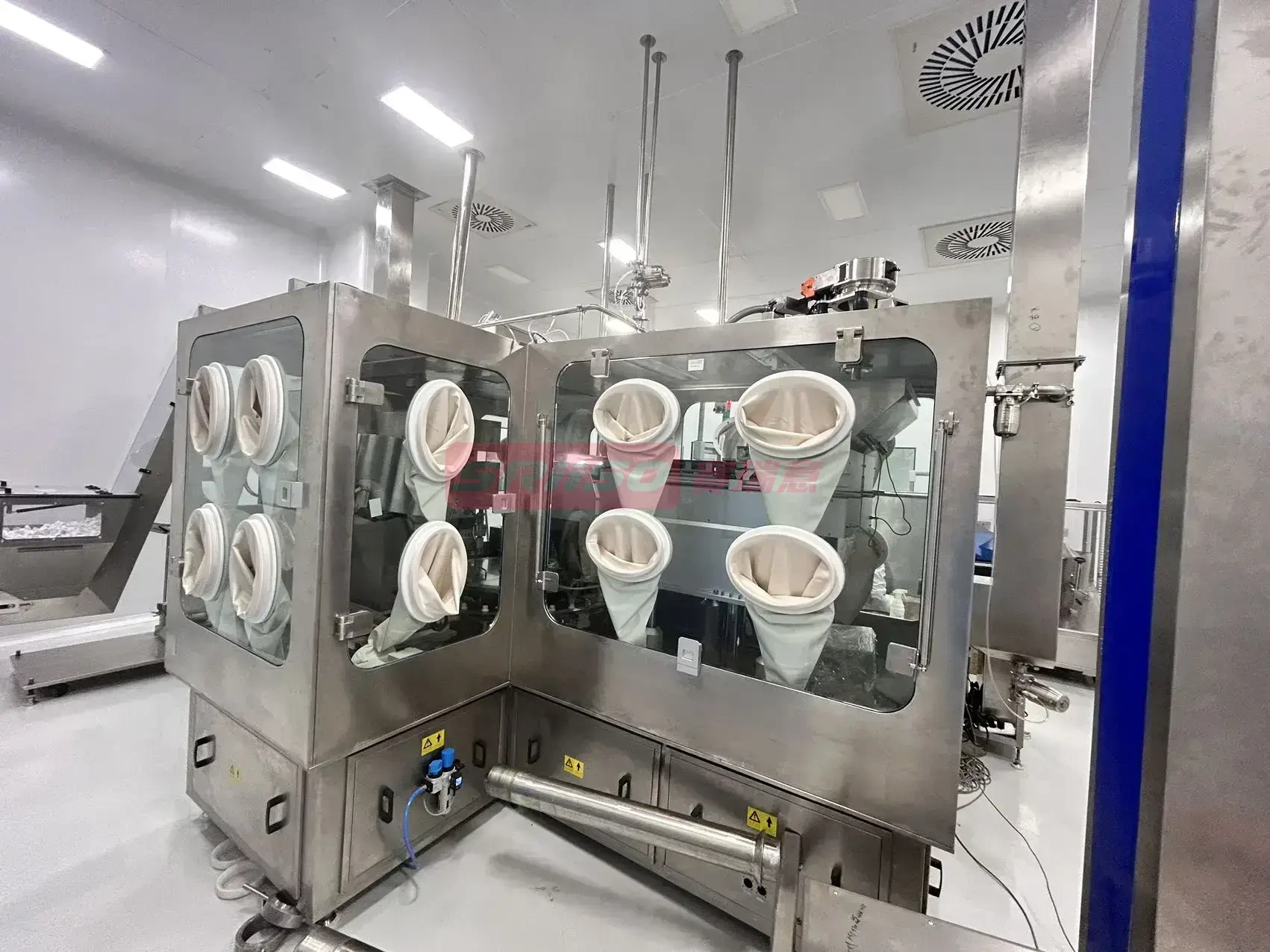

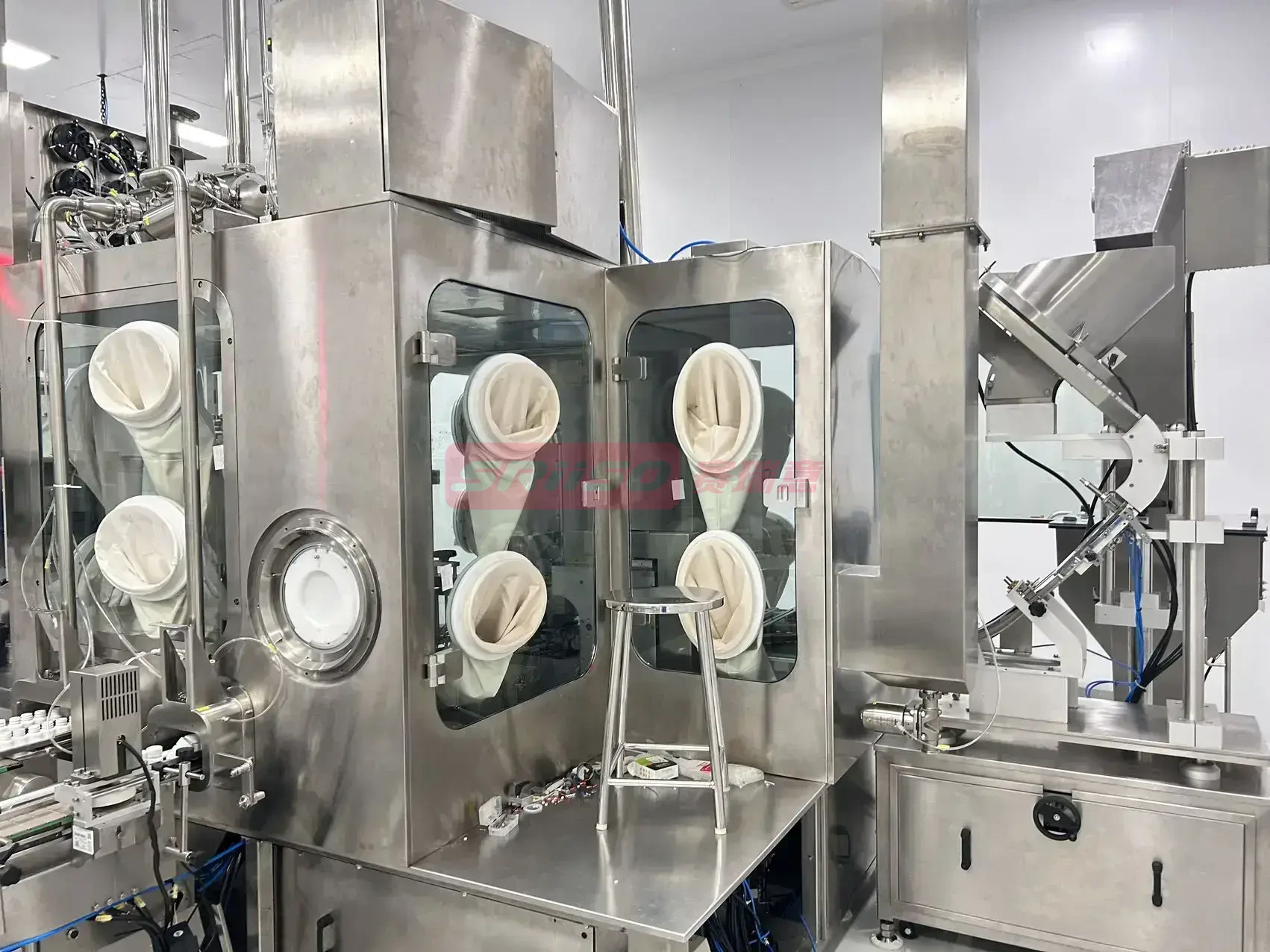

Negative pressure isolator for counting machine

The negative pressure isolator of the counting machine is suitable for process scenarios related to solid dosage form isolators, and can be integrated into projects based on equipment interfaces, operating methods, and verification requirements.

The system supports customization based on on-site space and upstream and downstream processes, taking into account operational safety, convenient maintenance, and stable operation.

Product features

The exhaust system adopts safely replaceable BIBO bag-in bag-out H14 high efficiency filter
The exhaust duct is equipped with spray balls to meet CIP cleaning requirements
The chamber is fitted with water-air spray guns satisfying WIP cleaning demands
Equipped with RTP rapid transfer system

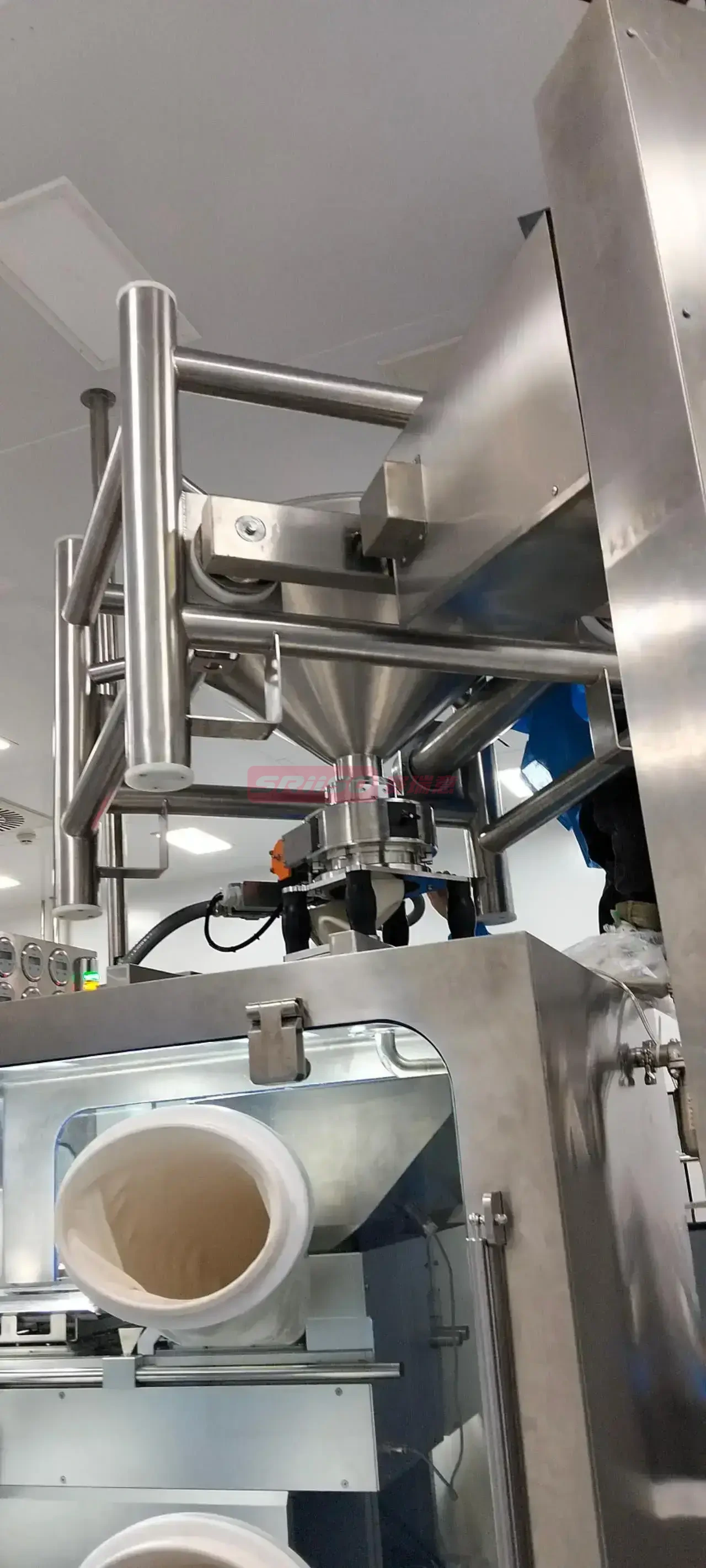

Automatic lifting structure is adopted for feeding, and AB valves are installed on the top to realize sealed material transfer
The isolator applies negative pressure design with automatic pressure adjustment, as well as emergency mode and response functions
Siemens control system meets FDA 21CFR PART 11 requirements for electronic signatures, electronic records, audit trails, batch records and reports

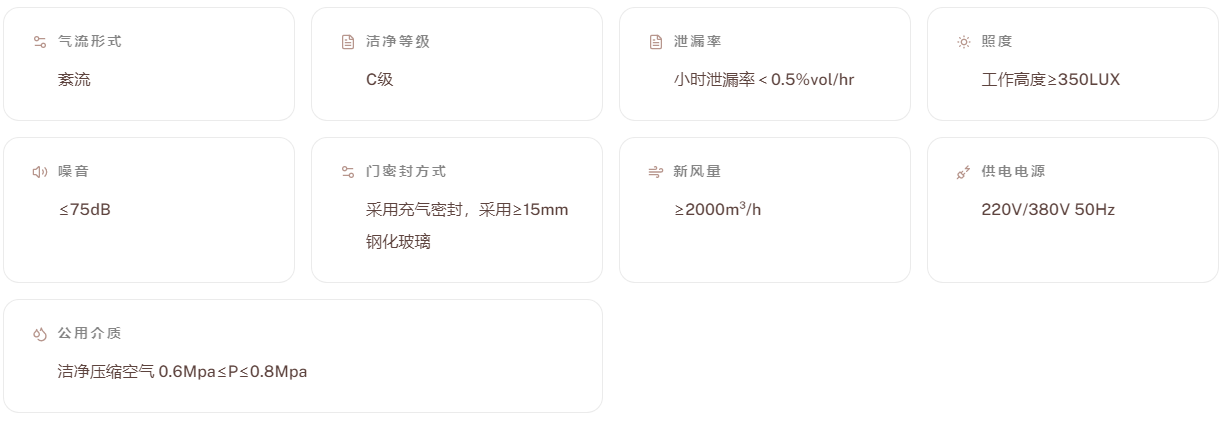

Technical parameters

Airflow form

Turbulence

Cleanliness Class

Grade C

Leakage rate

Hourly leakage rate

Illuminance

Working height ≥ 350LUX

Noise

≤75dB

Door sealing method

Adopting inflatable sealing and tempered glass with a thickness of ≥ 15mm

Fresh air volume

≥2000m³/h

Power supply

220V/380V 50Hz

Common Medium

Clean compressed air 0.6Mpa ≤ P ≤ 0.8Mpa
