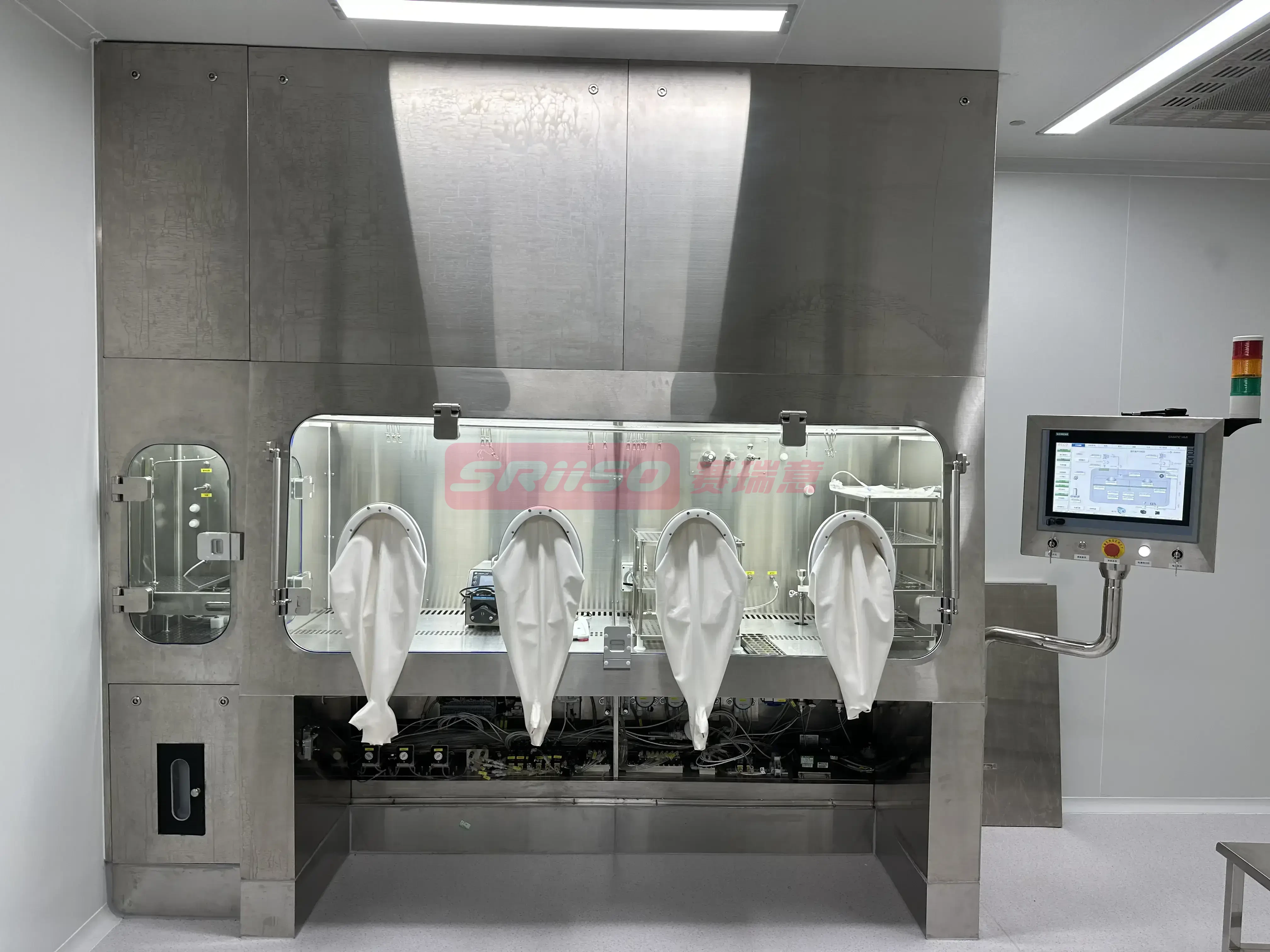

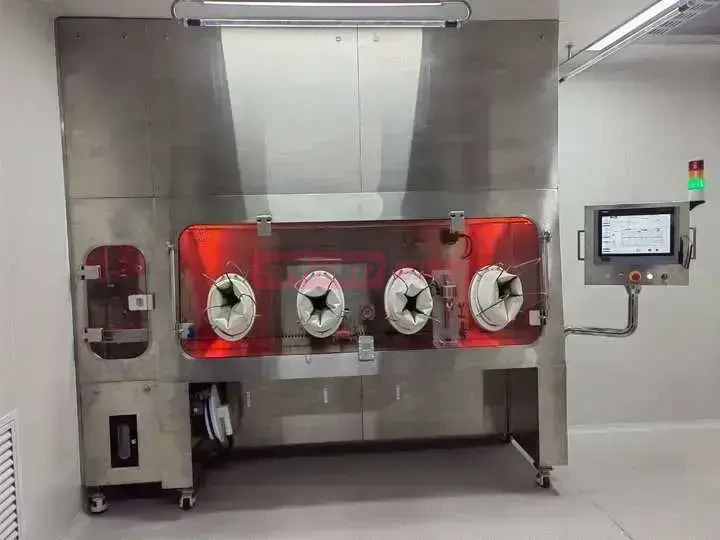

Aseptic packaging isolator-Sterile Isolator-SRI (Jiangsu) Biological Equipment Co., Ltd.

Language

Product features

Positive pressure vertical unidirectional flow design compliant with GMP requirements

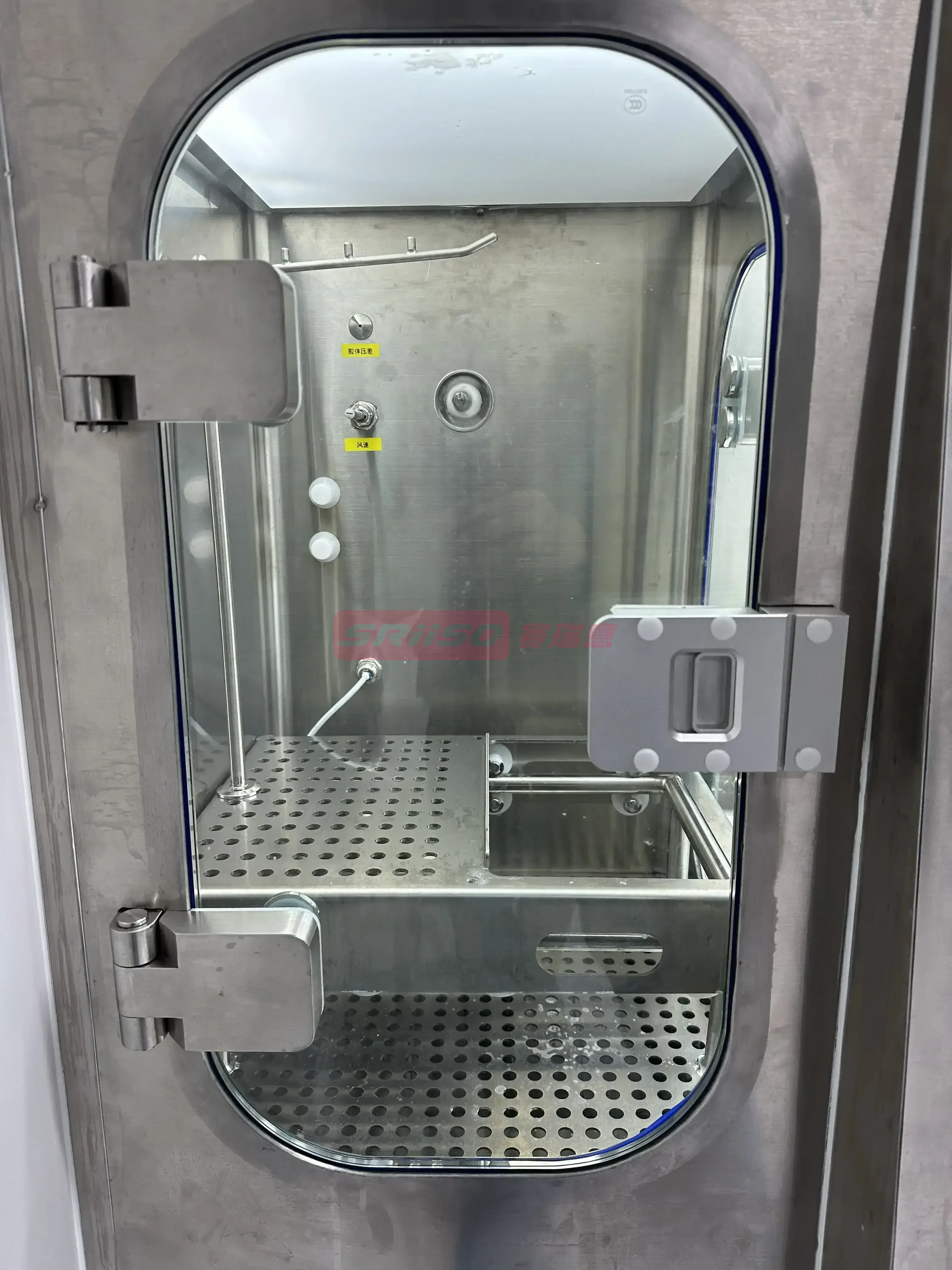

New fast vaporized hydrogen peroxide sterilization system completes sterilization within 20 minutes for pass-through chamber and 60 minutes for operation chamber
Excellent airtightness with hourly leakage rate less than 0.5%vol/hr

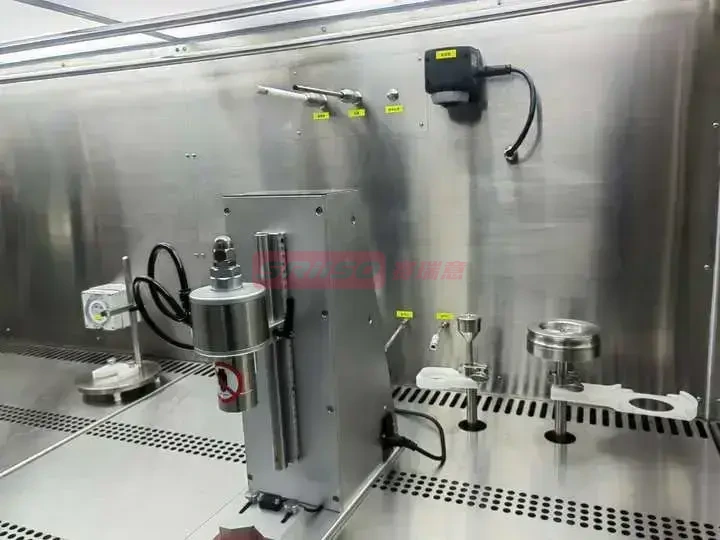

Integrated hydrogen peroxide resistant particle and airborne bacteria monitors support in-situ sterilization to avoid incomplete sterilization of sampling pipelines

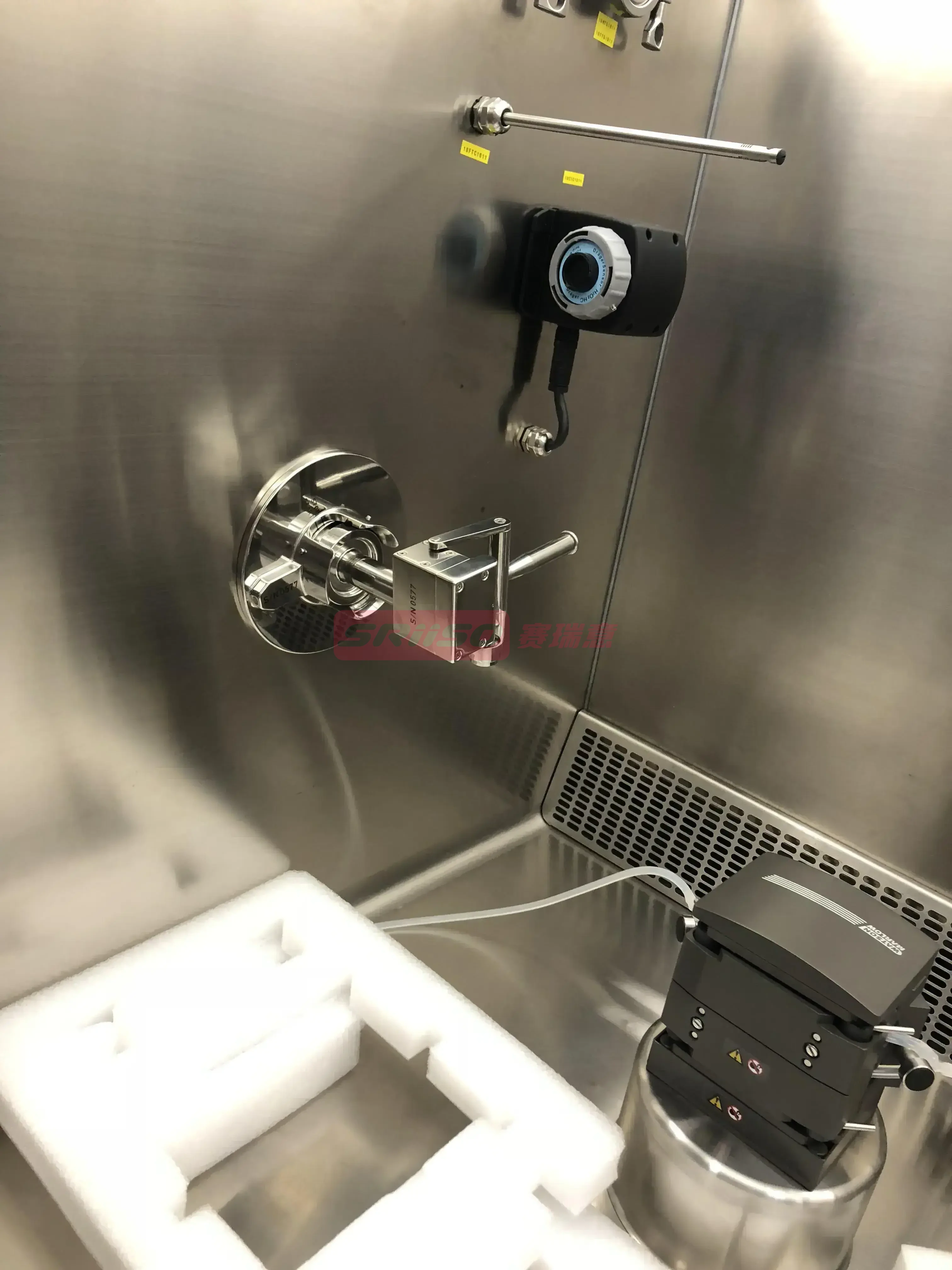

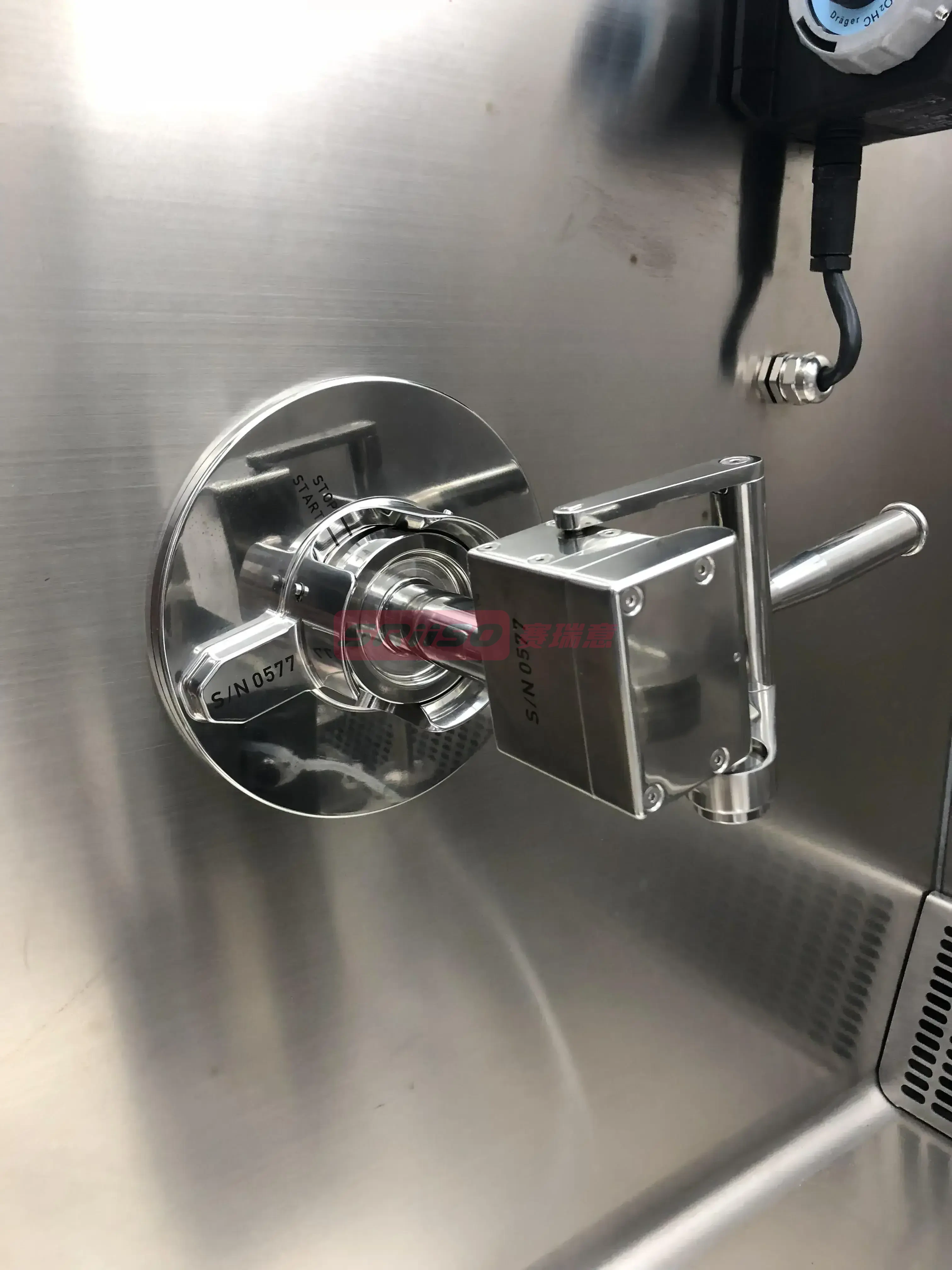

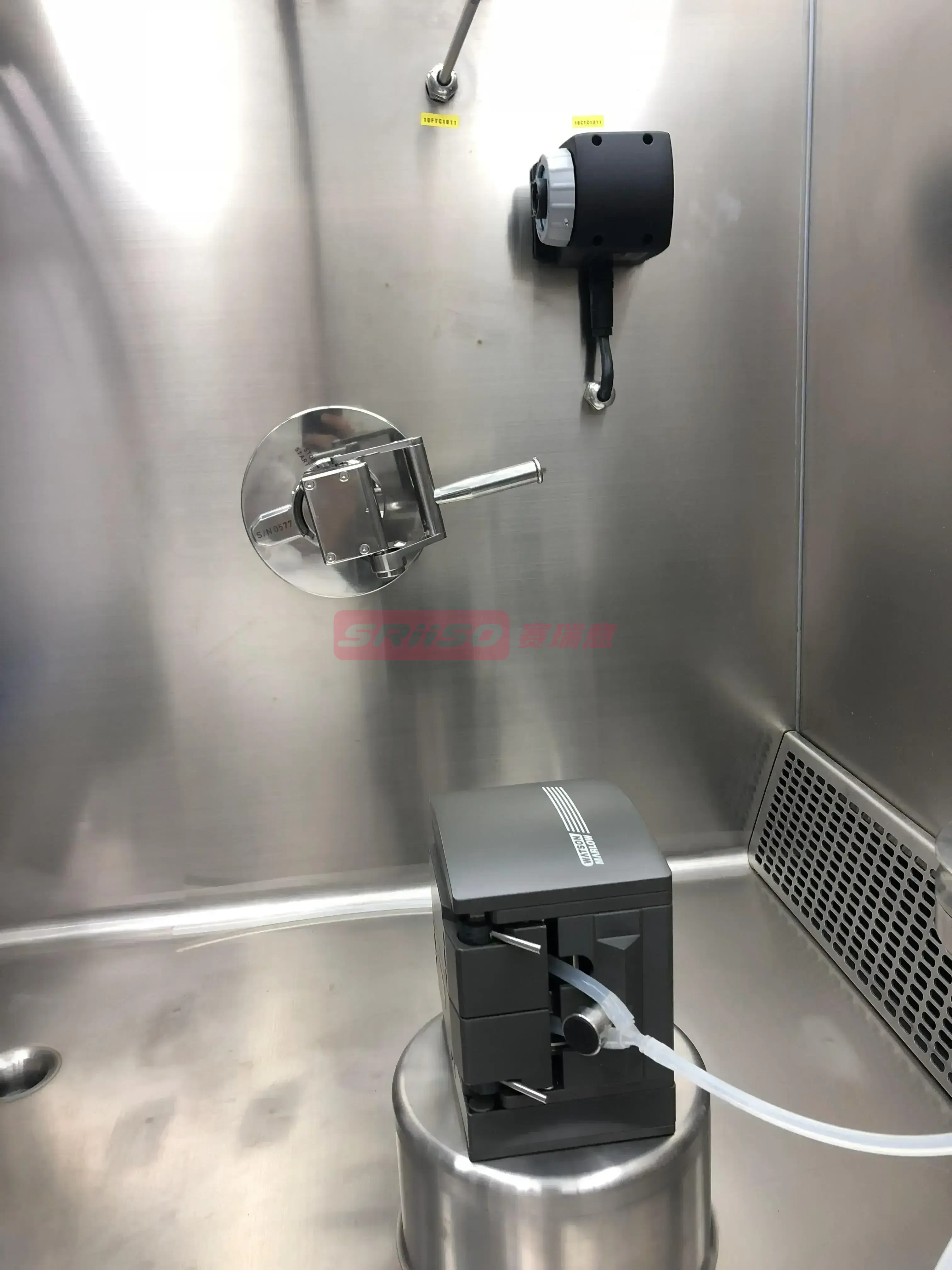

Available with RTP or SART configurations
Optional wireless glove leak detector supports wireless transmission and recording of test data
Siemens control system meets GAMP 5 and FDA 21CFR PART 11 requirements for electronic records and electronic signatures
Professional hydrogen peroxide sterilization cycle development and validation services (CD/CV) are provided

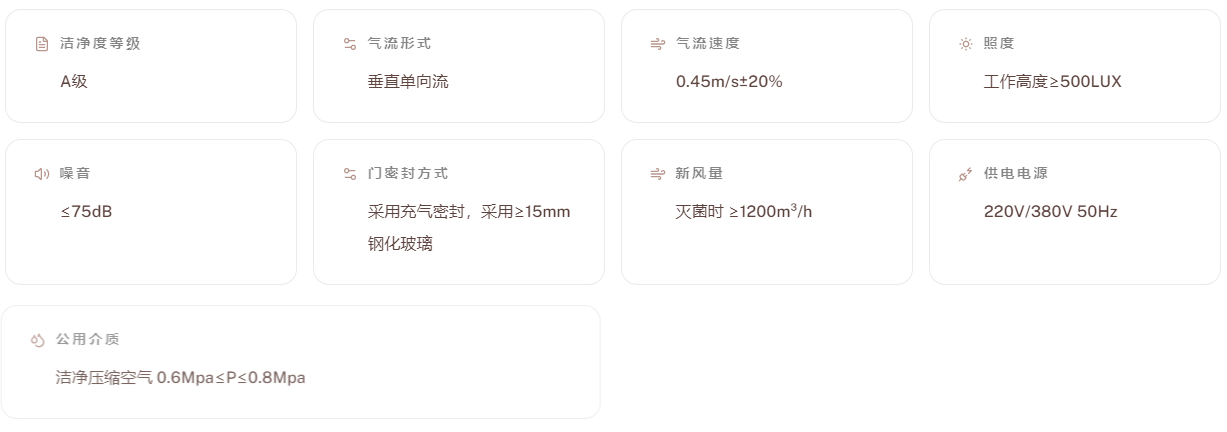

Technical parameters

Cleanliness Class

A-level

Airflow form

Vertical unidirectional flow

Airflow velocity

0.45m/s±20%

Illuminance

Working height ≥ 500LUX

Noise

≤75dB

Door sealing method

Adopting inflatable sealing and tempered glass with a thickness of ≥ 15mm

Fresh air volume

≥ 1200m ³/h during sterilization

Power supply

220V/380V 50Hz

Common Medium

Clean compressed air 0.6Mpa ≤ P ≤ 0.8Mpa
