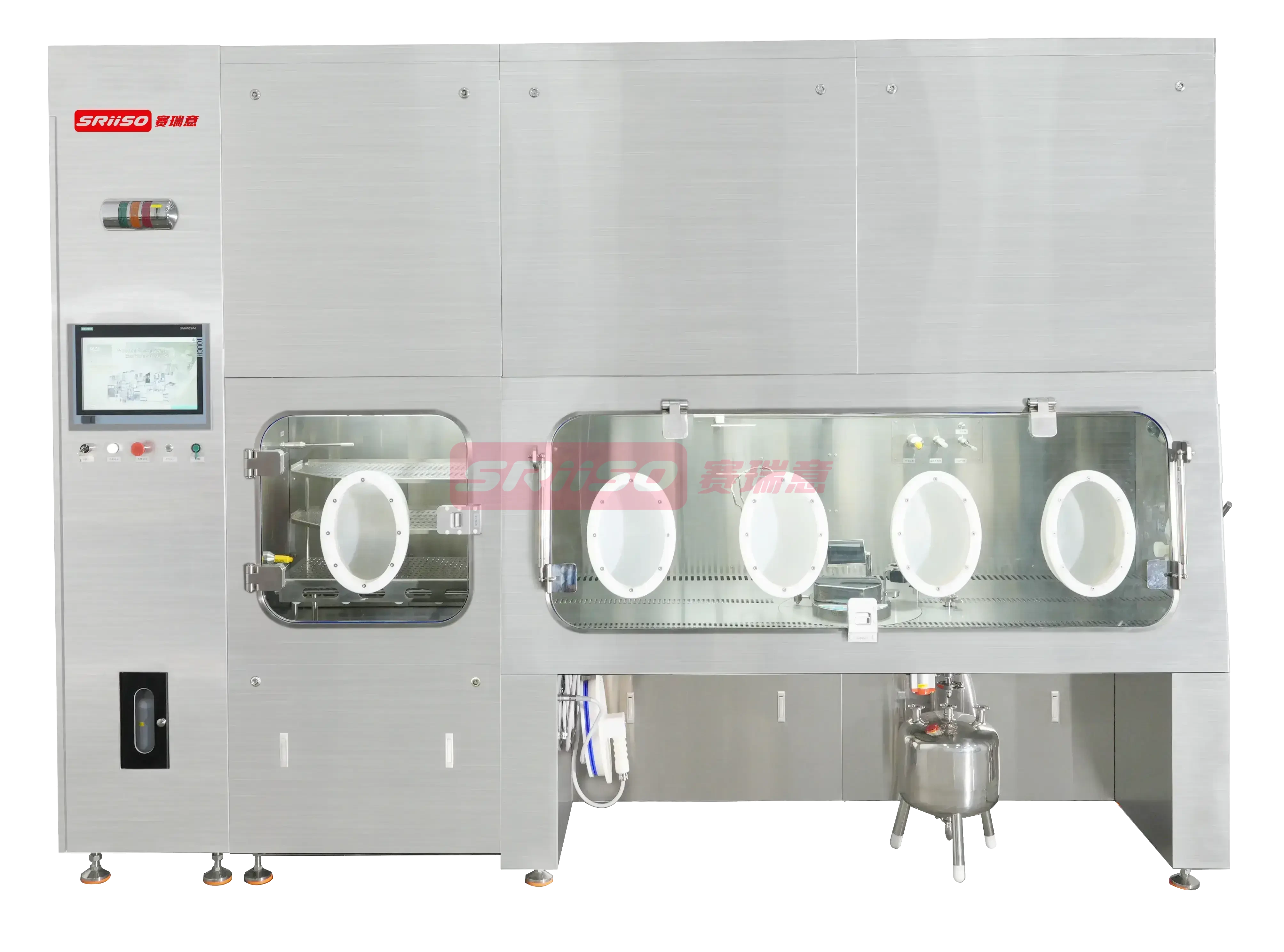

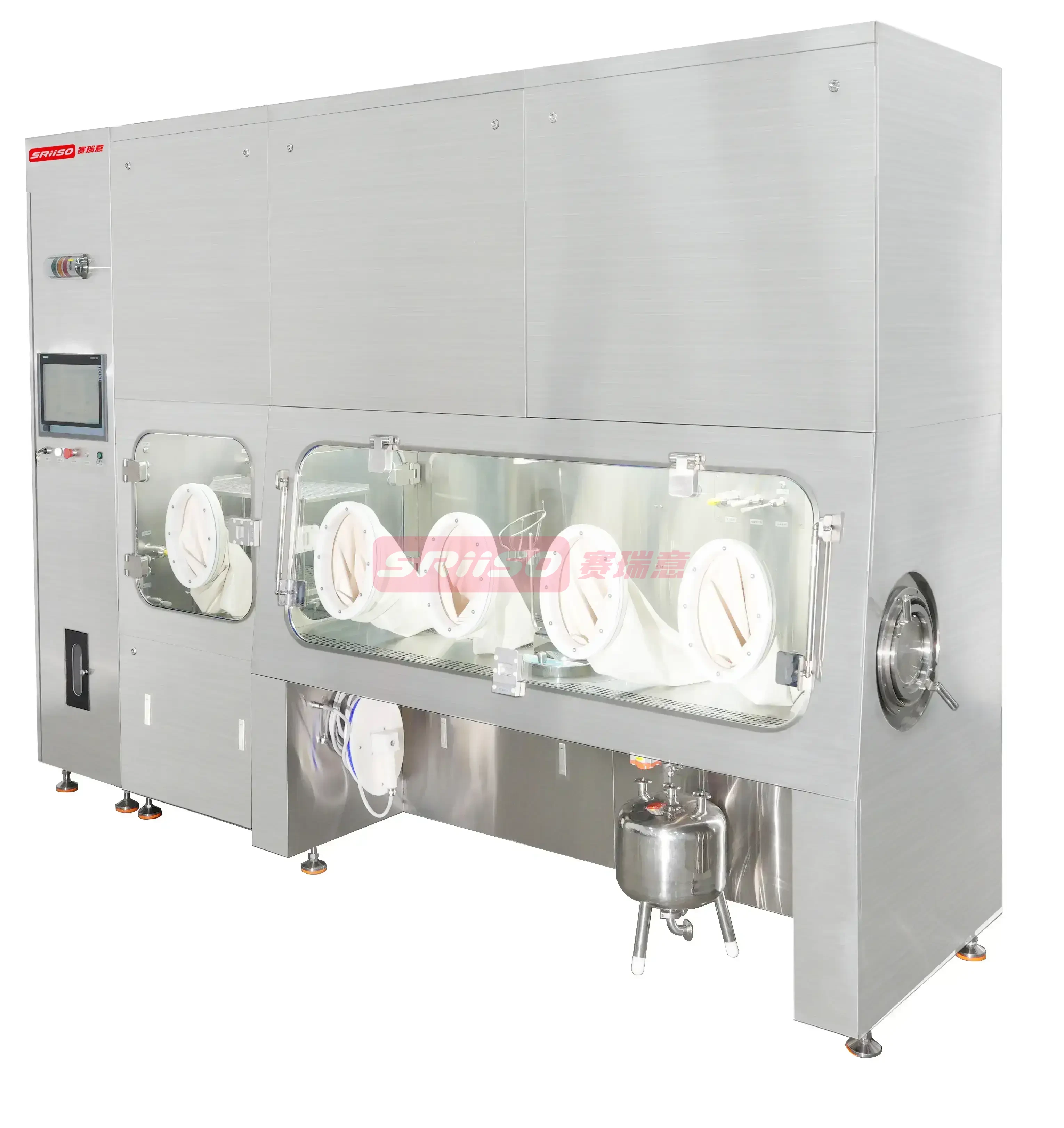

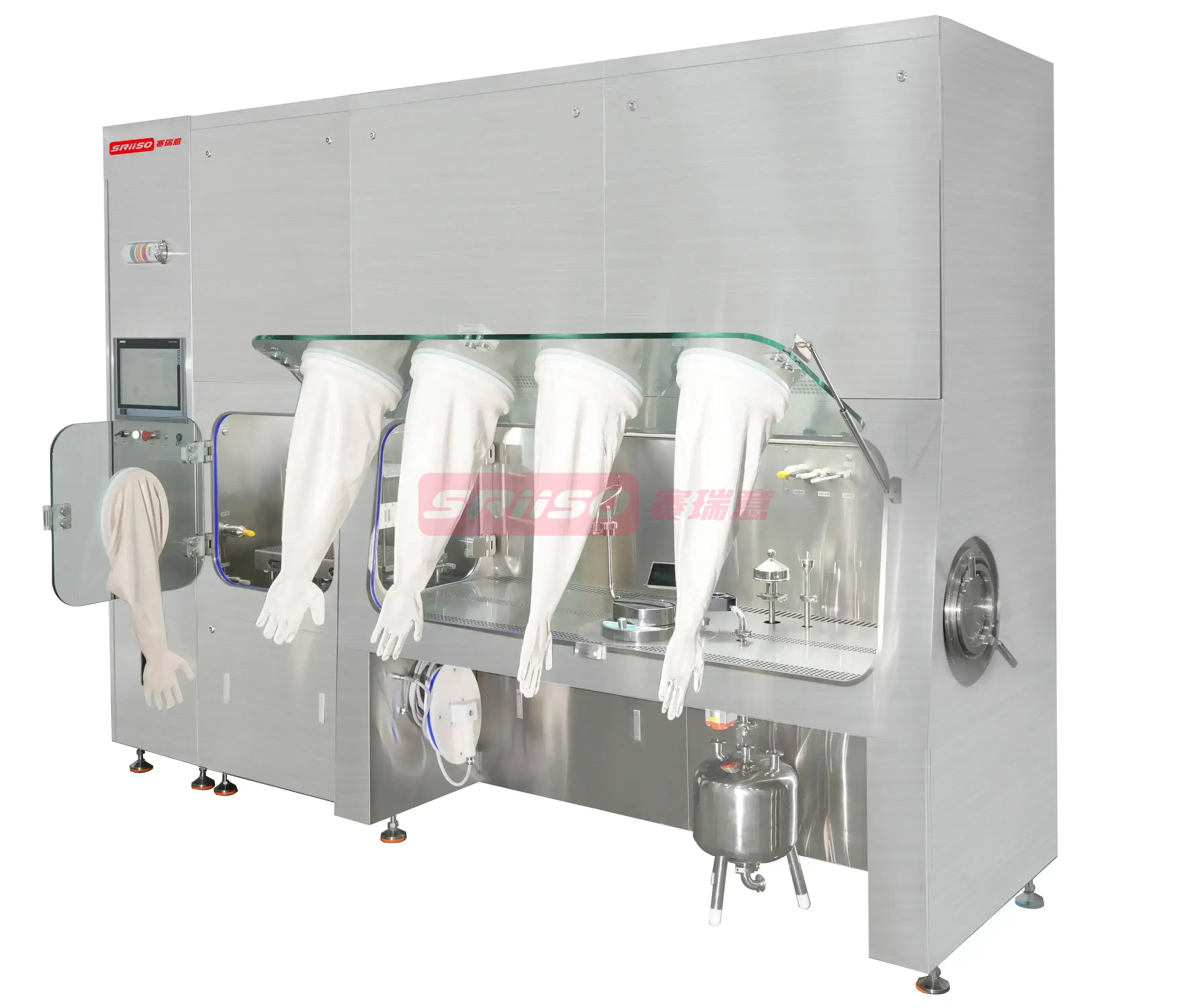

Aseptic inspection isolator-Sterile Isolator-SRI (Jiangsu) Biological Equipment Co., Ltd.

Product features

Adopts positive pressure vertical unidirectional flow design in line with GMP standards
Built-in vaporized hydrogen peroxide sterilization system adopts flash evaporation dry sterilization technology, which can effectively penetrate HEPA filters and achieve log6 microbial reduction of biological indicators
Maintains excellent airtightness with hourly leakage rate below 0.5%vol/hr
Integrates hydrogen peroxide-resistant particle and airborne bacteria monitors supporting in-situ sterilization to eliminate incomplete sterilization risks of sampling pipelines
The bacteria collector is fitted with waste liquid collection tank for sealed transfer and inactivation, and all pipelines support online sterilization

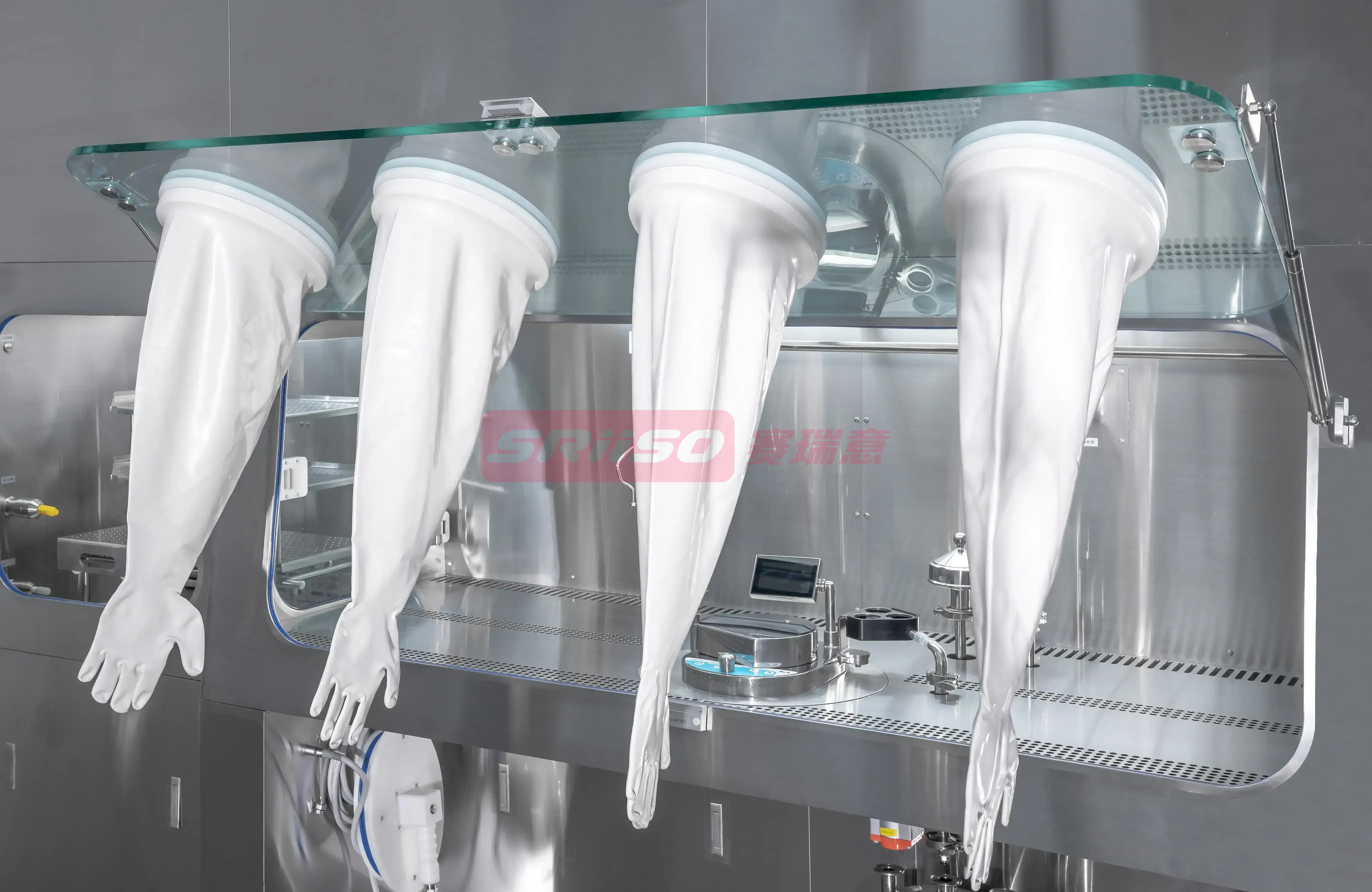

Wireless glove integrity tester is optional with wireless data transmission and recording functions
Siemens control system conforms to GAMP 5 and FDA 21CFR PART 11 requirements for electronic records and electronic signatures
Professional hydrogen peroxide sterilization cycle development and validation services (CD/CV) are available

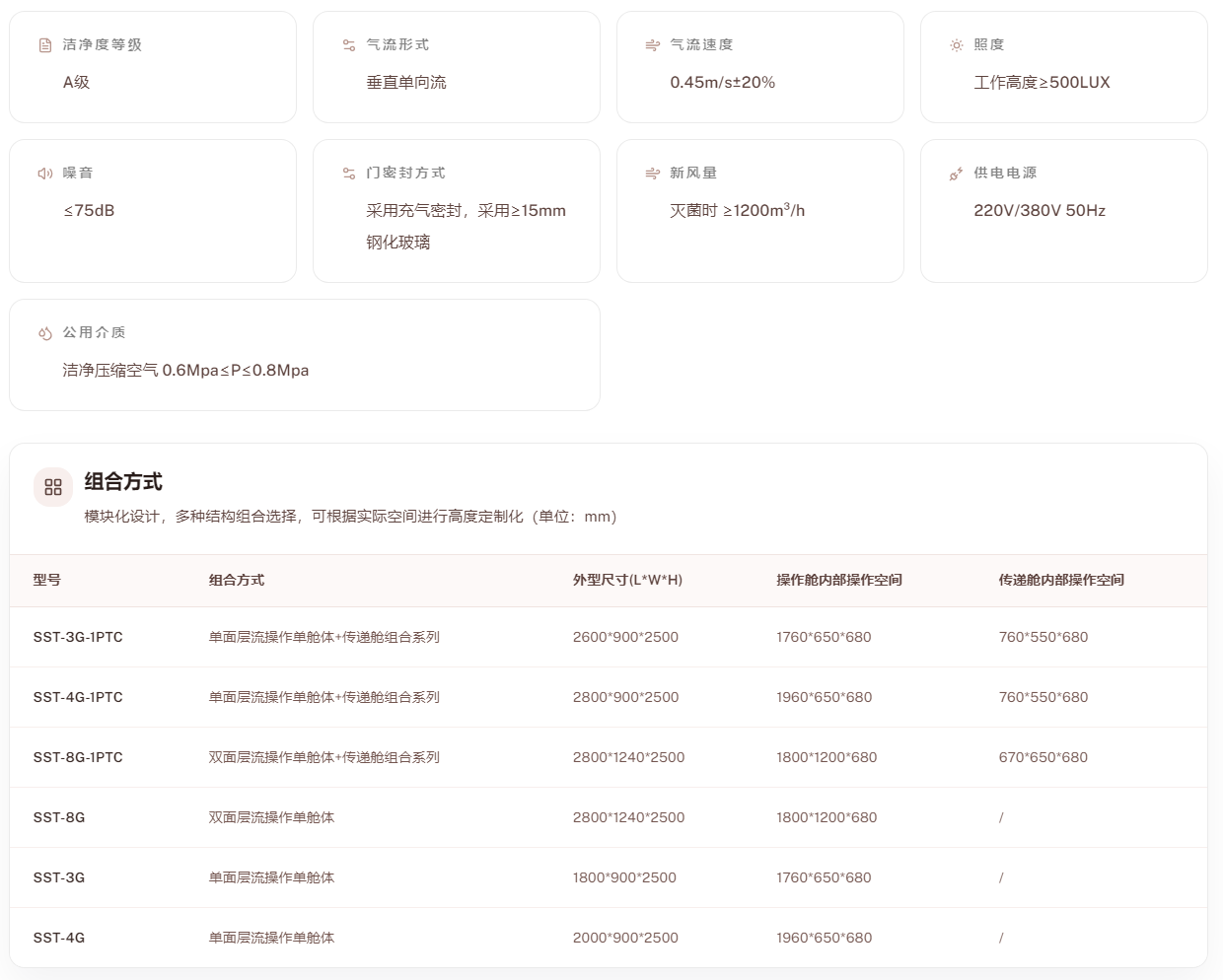

A-level

Vertical unidirectional flow

0.45m/s±20%

Working height ≥ 500LUX

≤75dB

Adopting inflatable sealing and tempered glass with a thickness of ≥ 15mm

≥ 1200m ³/h during sterilization

220V/380V 50Hz

Clean compressed air 0.6Mpa ≤ P ≤ 0.8Mpa

Modular design with multiple structural combinations, customizable in height according to actual space (Unit: mm)

Model	Combination Mode	Overall Dimension (LWH)	Internal Operating Space of Operation Chamber	Internal Operating Space of Transfer Chamber
SST-3G-1PTC	Single-sided laminar flow single operation chamber + transfer chamber combined series	26009002500	1760650680	760550680
SST-4G-1PTC	Single-sided laminar flow single operation chamber + transfer chamber combined series	28009002500	1960650680	760550680
SST-8G-1PTC	Dual-sided laminar flow single operation chamber + transfer chamber combined series	280012402500	18001200680	670650680
SST-8G	Dual-sided laminar flow single operation chamber	280012402500	18001200680	/
SST-3G	Single-sided laminar flow single operation chamber	18009002500	1760650680	/
SST-4G	Single-sided laminar flow single operation chamber	20009002500	1960650680	/
