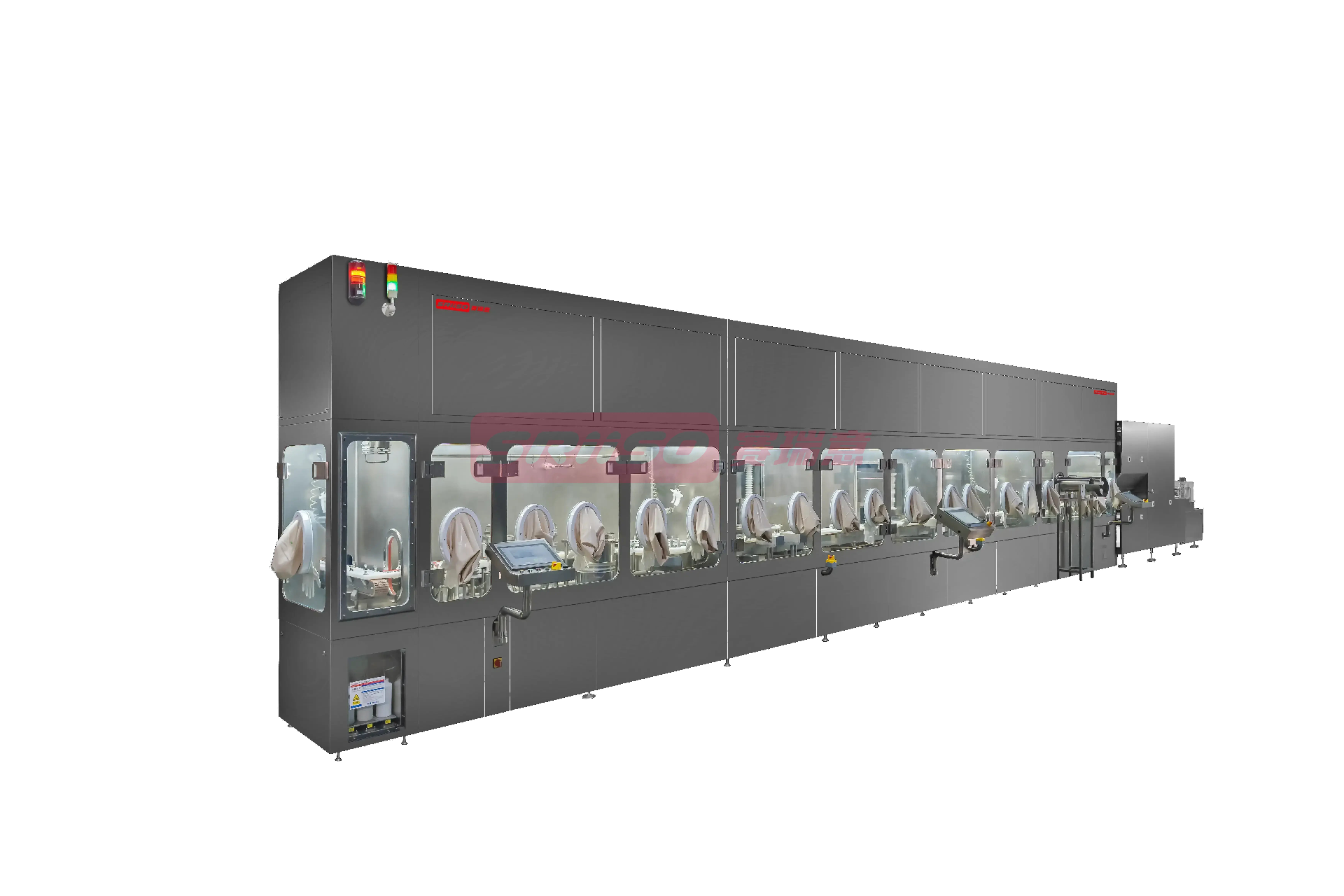

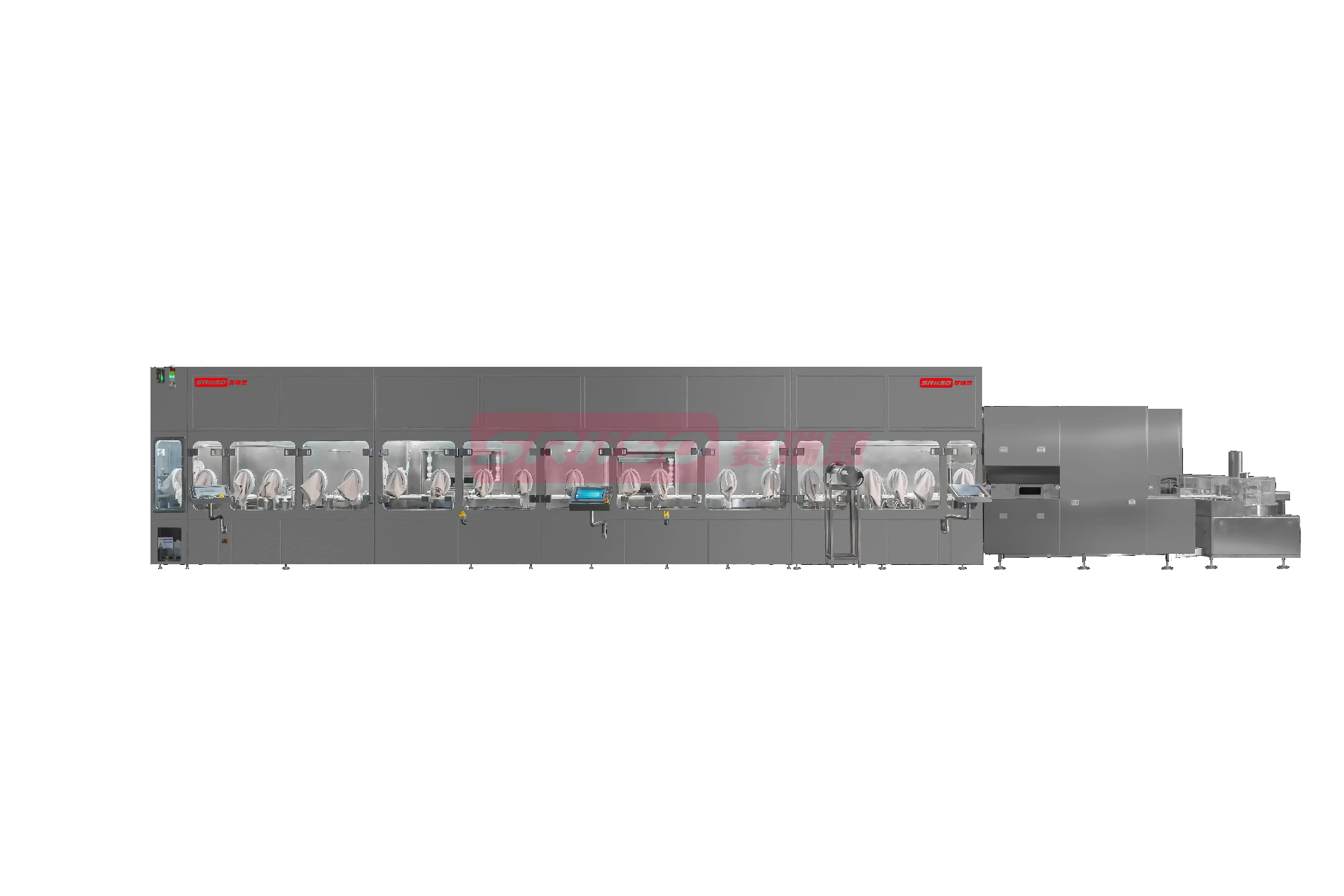

Production type fully isolated filling line solution-Integrated Solution for Sterile Filling and Lyophilization-SRI (Jiangsu) Biological Equipment Co., Ltd.

Product features

Excellent airtightness with hourly leakage rate less than 1%vol/hr
Suitable for 2-100ml vials with output of 100-300 vials per minute
Adopts full servo control technology of Siemens/Schneider for flexible and intelligent production
Supports remote fault diagnosis with simple operation and high efficiency
All processes of the isolator are verified via mock-up simulation with ergonomic design
Quick disassembly and assembly of specification components
Fully customizable overall layout according to customer operation processes and usage habits
Optimized airflow distribution design based on CFD research
The SCADA system can connect with customer MES, LIMS and other management systems for remote data transmission and backup
Siemens control system complies with GAMP 5 guidelines and meets FDA 21CFR PART 11 requirements for electronic records and electronic signatures

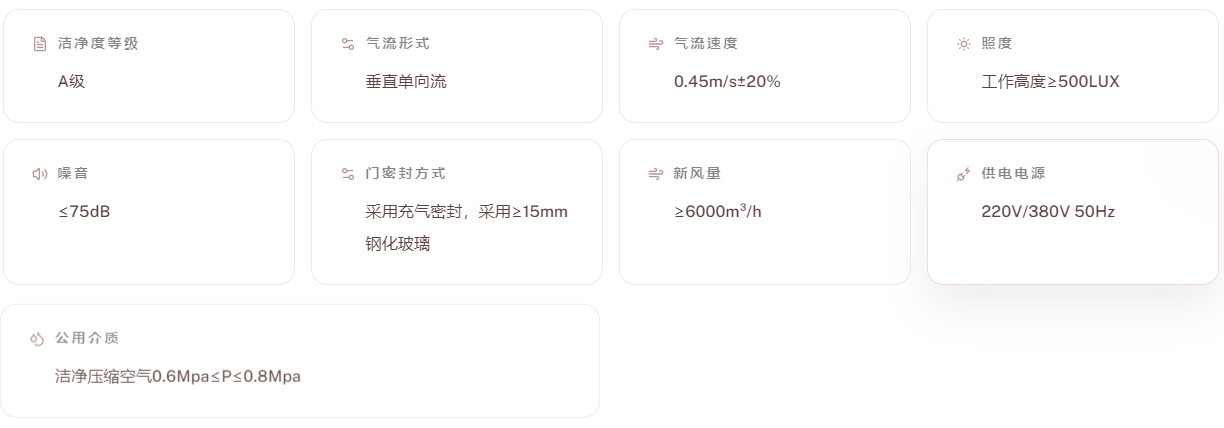

A-level

Vertical unidirectional flow

0.45m/s±20%

Working height ≥ 500LUX

≤75dB

Adopting inflatable sealing and tempered glass with a thickness of ≥ 15mm

≥6000m³/h

220V/380V 50Hz

Clean compressed air 0.6Mpa ≤ P ≤ 0.8Mpa
