Monkey breeding isolator

Monkey breeding isolators are suitable for process scenarios related to biosafety protective isolators, and can be project-based integrated around equipment interfaces, operation methods, and verification requirements.

The system supports customization based on on-site space and upstream and downstream processes, taking into account operational safety, convenient maintenance, and stable operation.

Product features

Customizable and modular design for flexible combination as required
Suitable for P3 and P4 laboratories
Non-airtight negative pressure isolation monkey cage complies with RB/T199-2015 technical specification for biosafety performance evaluation of laboratory equipment

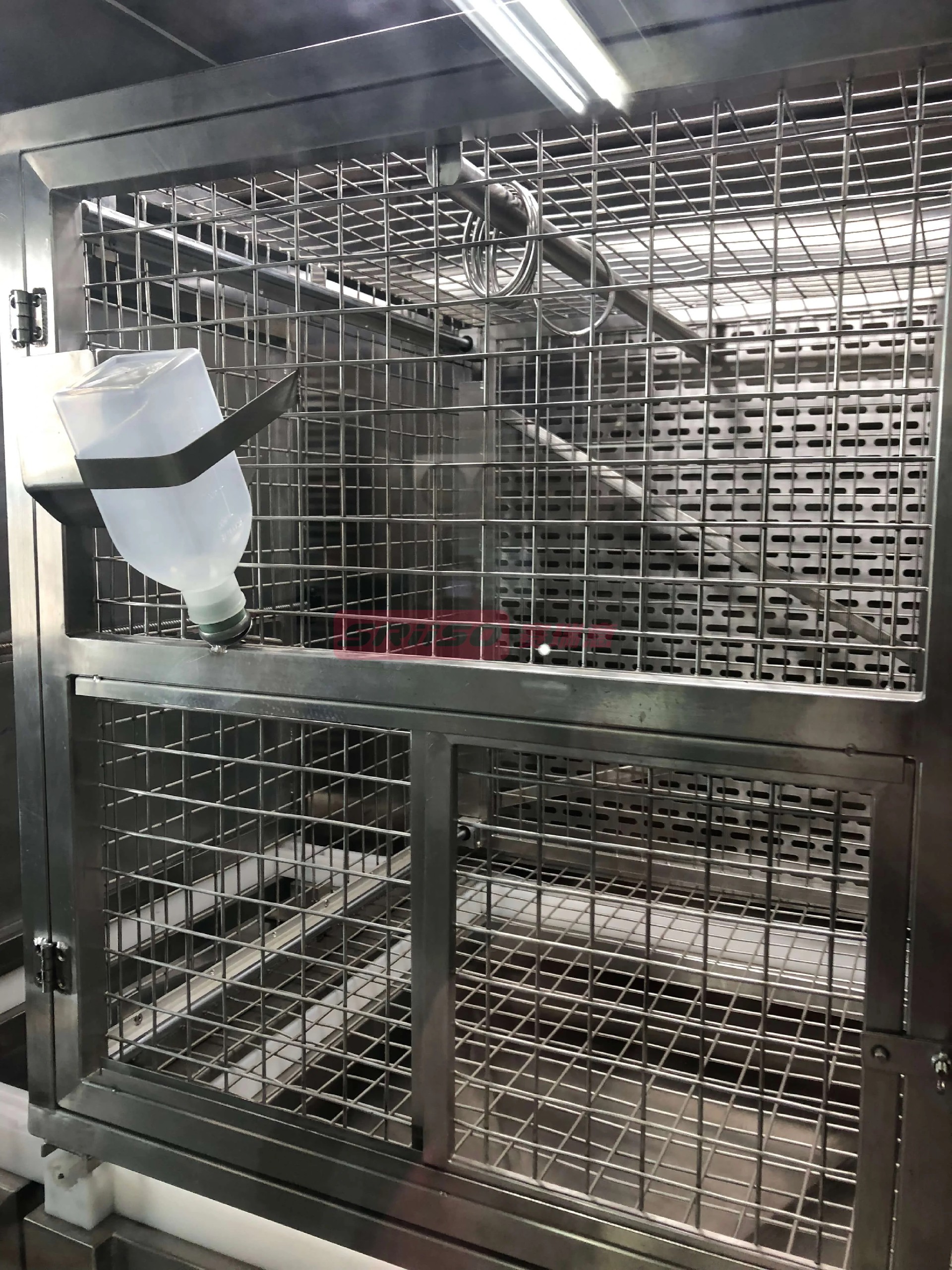

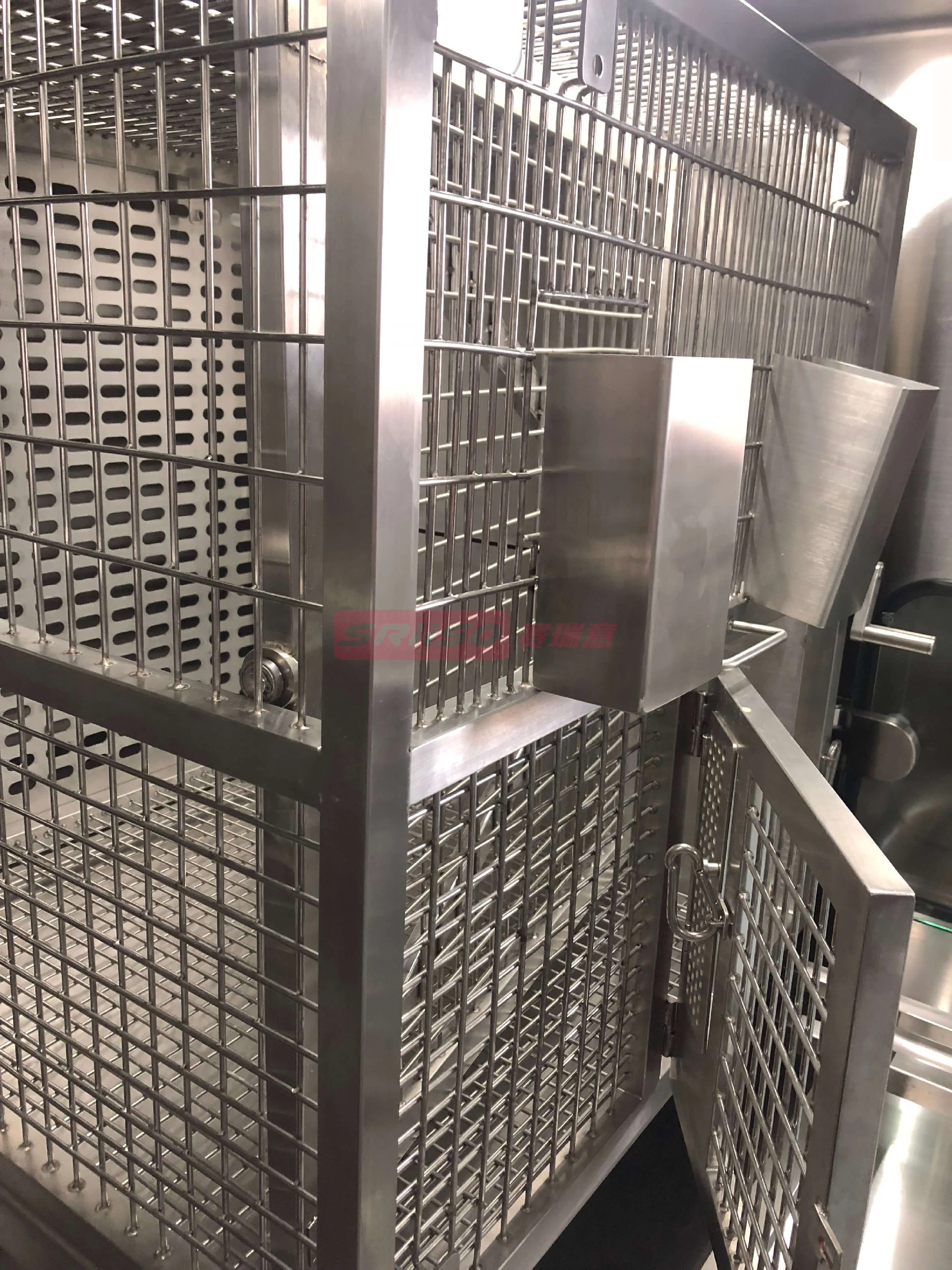

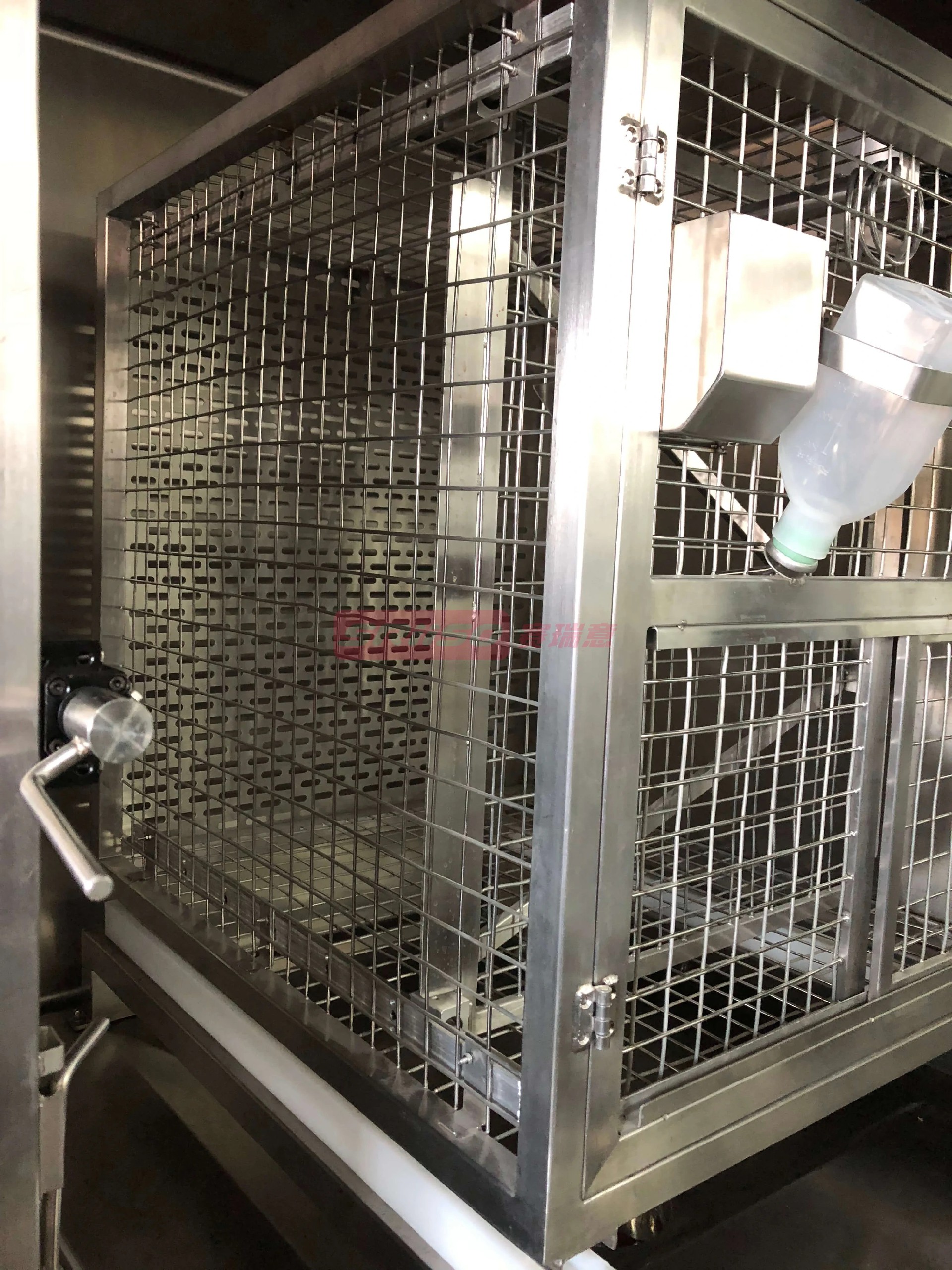

Separated main unit layout, main body made of 304 stainless steel and inner cage of 316 stainless steel with detachable insert cage structure
Waste collection tray fitted with collection bags, air outlet equipped with hair and dander filter, multiple locking structures for cage doors and observation windows
Inner cage floor area ≥0.6m², height ≥0.85m, overall exterior height ≤2.2m
The restraint device adopts integrated steel pressing plate and one-piece driving structure for safe and labor-saving operation
Supply air passes through HEPA filtration before entering the cage; exhaust air is filtered by primary, medium and high efficiency filters and connected to main exhaust pipe, maximum air volume ≥500m³/h

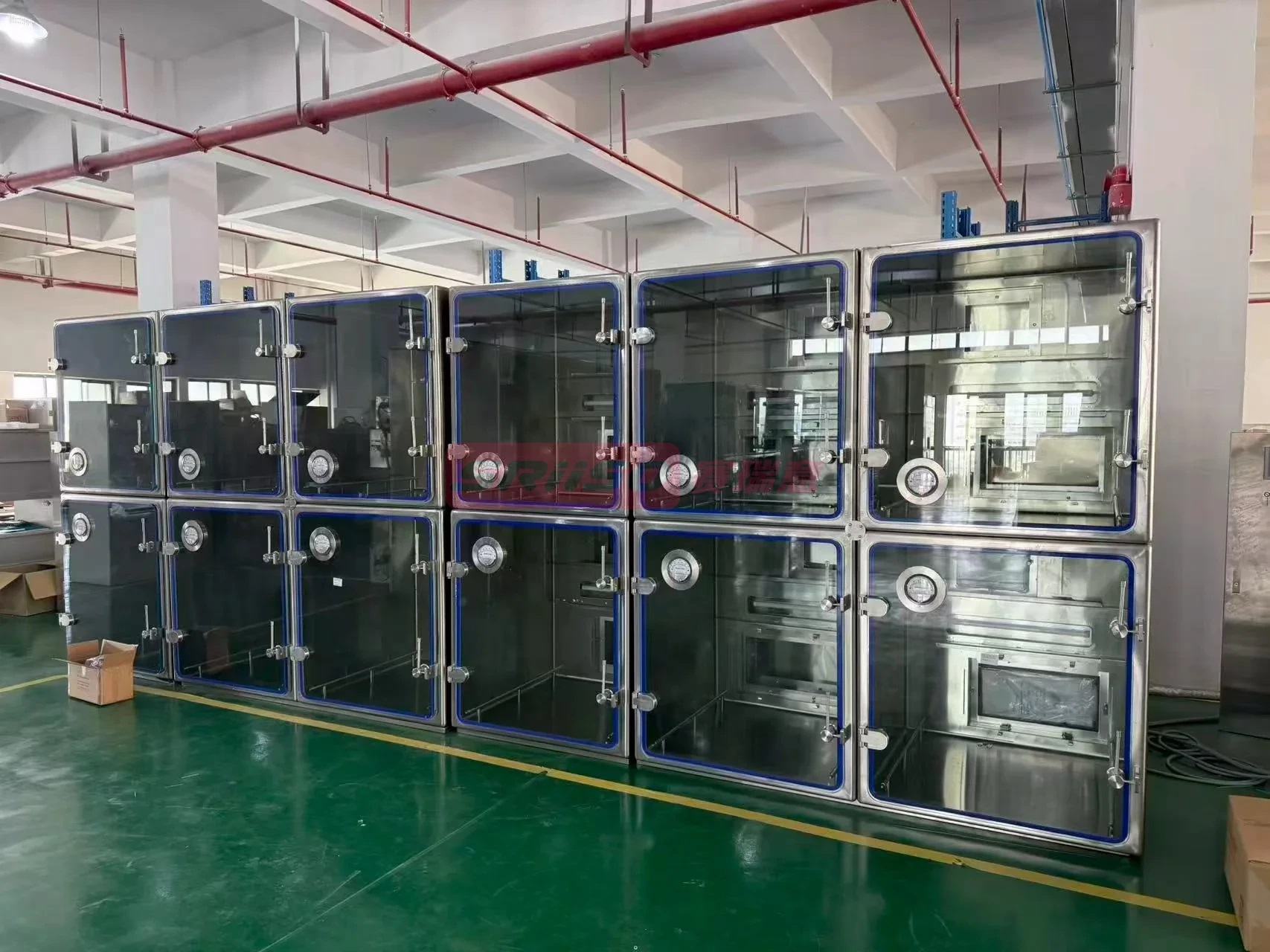

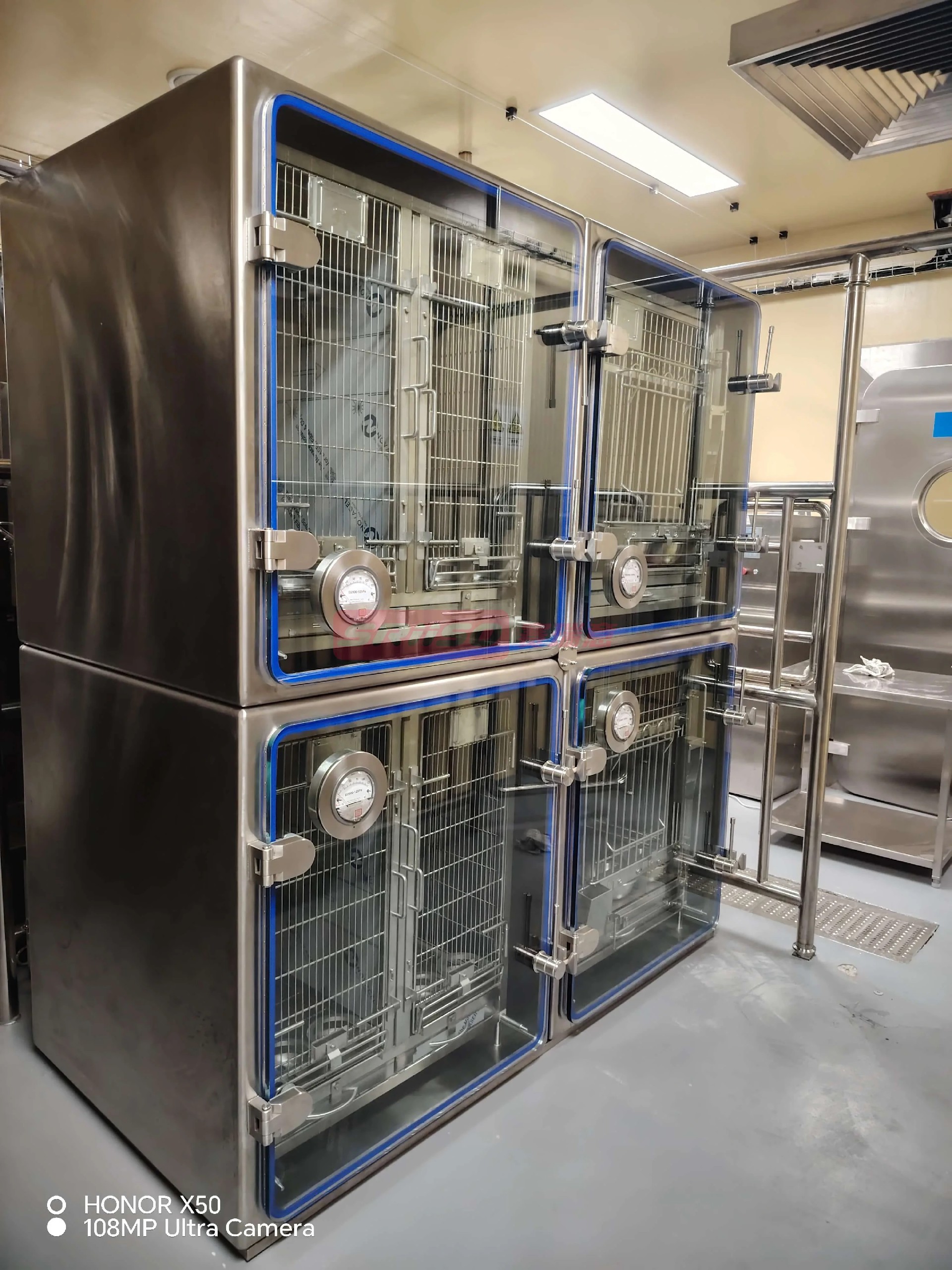

Available in combined groups of two or four cages
VHP sterilization ports are reserved for both supply and exhaust hood filters to realize in-situ pipeline disinfection
Maintains inward directional airflow and negative pressure inside the cage with pressure difference ≥-20Pa and air change rate ≥20 times per hour
Siemens control system conforms to GAMP 5 guidelines and meets FDA 21CFR PART 11 requirements for electronic records and electronic signatures

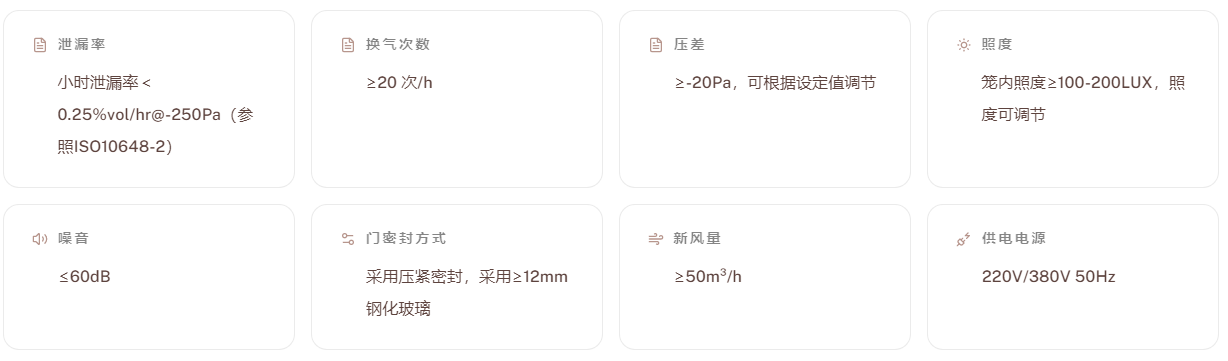

Technical parameters

Leakage rate

Hourly leakage rate＜0.25%vol/hr@-250Pa（Reference ISO10648-2）

Air changes per hour

≥ 20 times/h

Pressure difference

≥-20Pa， Adjustable according to the set value

Illuminance

Indoor illumination ≥ 100-200LUX, adjustable illumination

Noise

≤60dB

Door sealing method

Adopting compression sealing and tempered glass with a thickness of ≥ 12mm

Fresh air volume

≥50m³/h

Power supply

220V/380V 50Hz
